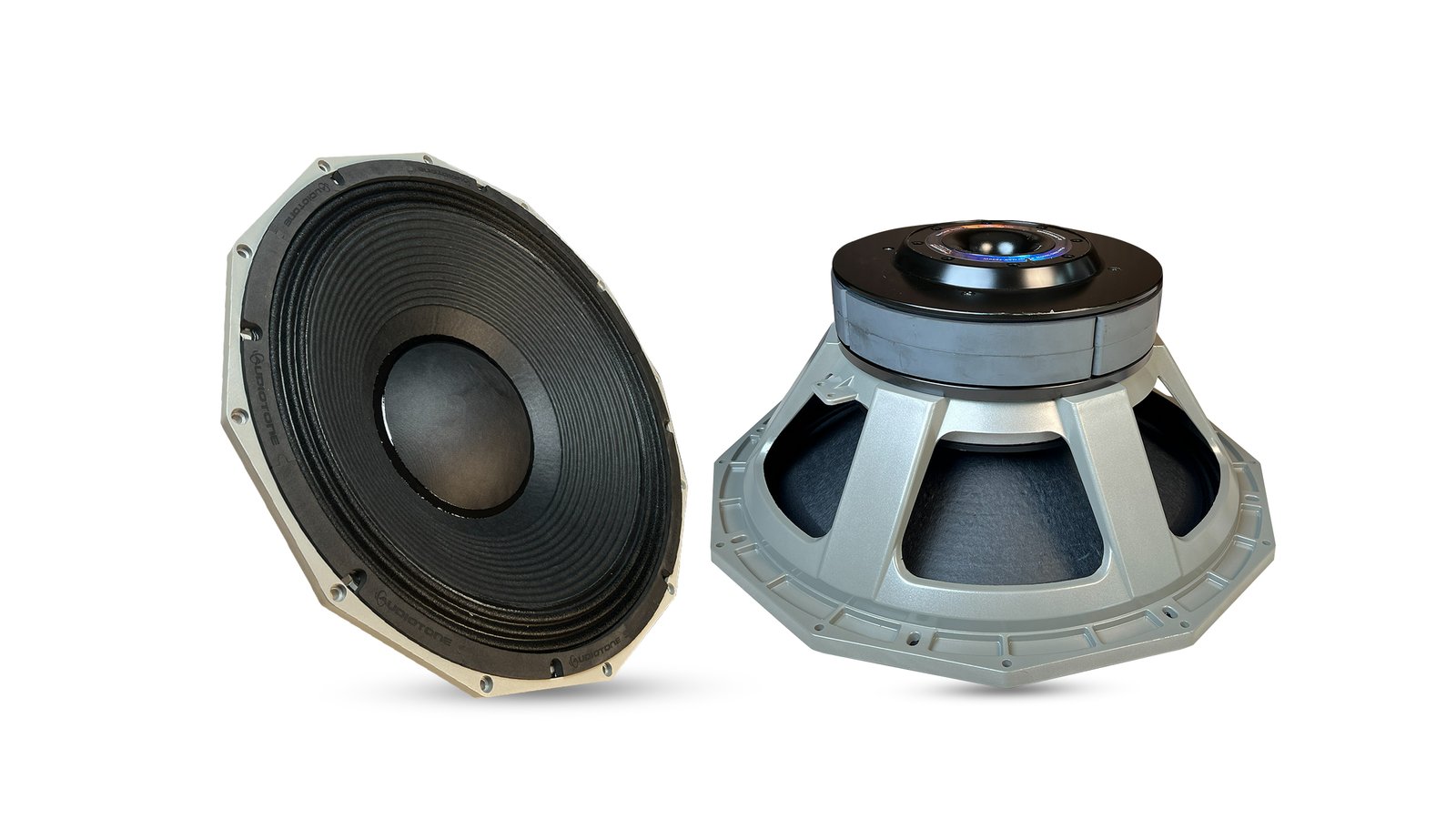

AD- 2184 PD

Nominal DIA

21"/550mm

Impedance

8Ω/5.8Ω

Powr Max

7600W

Power RMS

3800W

Voice Coil

6"/152mm In/Out -4Layers

Magnet

300*170*50/ Y35

Basket

Aluminium

Frequency

35Hz~2Khz

SPL

98±2dB

Gross Weight

37.8 KG

    Have a question?




    Category:
    Loading...

    Description

    Frequently Asked Questions (FAQs)

    1.Audiotone AD-2184 PD 21-inch ultra-subwoofer driver ki continuous RMS wattage capability aur peak power handling specifications kya hain?
    Audiotone AD-2184 PD Audiotone ke transducer lineup ka mammoth 21-inch (550 mm) ultra-high power low-frequency transducer driver hai. Iski official continuous power handling rating 3800W RMS hai, jabki peak wattage capacity massive 7600W MAX tak jaati hai. 8Ω nominal impedance (5.8Ω DC resistance) configuration ke sath, yeh ultra-low frequency scoops, horn-loaded bass enclosures, aur high-SPL outdoor festival subwoofer rigs ke liye ultimate choice hai.

    2.6-inch (152mm) In/Out 4-layer voice coil aur Y35 grade magnet (300×170×50 mm) thermal load management ko kaise handle karte hain?
    Is driver mein massive 6-inch (152 mm) Inside/Outside 4-layer copper voice coil architecture use ki gayi hai, jo high-grade Y35 ferrite magnet (300 × 170 × 50 mm) assembly ke sath pair hoti hai. 4-layer coil density aur dual-sided winding exposure extreme electrical current loading par rapid thermal dissipation deliver karte hain, jisse continuous heavy bass playback par voice coil overheating aur power compression risks effectively eliminate ho jate hain.

    3.35Hz–2kHz frequency bandwidth, 98±2dB SPL rating, aur die-cast aluminum basket performance ko kaise elevate karte hain?
    Is transducer mein 35Hz se 2kHz wideband frequency response tune kiya gaya hai, jo sub-audible low-end rumble (35Hz) se le kar punchy mid-bass impact tak uncompressed clarity deliver karta hai. High 98±2dB SPL sensitivity acoustic energy output ko maximize karti hai, jabki 37.8 kg gross weight wala heavy-duty die-cast aluminum basket extreme mechanical excursion par frame flex ko completely eliminate karta hai.

    4.Is 3800W RMS 21-inch transducer driver ko safely drive karne ke liye ideal Audiotone power amplifier matching guidelines kya hain?
    Is 3800W RMS (8Ω) ultra-heavy driver unit ko uncompressed dynamic headroom deliver karne ke liye 4000W se 5000W RMS per channel @ 8Ω output give karne wale power amplifiers (jaise Audiotone Z-Series AD-12000Z ya ST-Series AD-10000 in bridge/high-output modes) ke sath match karne ki recommendation di jaati hai. Structural mechanical safety ke liye DSP crossovers par 28Hz–32Hz High-Pass Filter (HPF) cutoff apply karna mandatory hai.

    5.Audiotone AD-2184 PD 21-inch driver ka current price check, genuine product authentication, aur regional dealer support kaise obtain karein?
    Is flagship 21-inch commercial transducer driver ka pricing structure localized transportation costs, state GST norms, aur authorized dealer margins par base karta hai. Official technical specs verify karne, genuine unit serial track karne, aur direct authorized regional distribution network access karne ke liye official brand platform audiotone.co.in par visit karein ya nearest authorized Audiotone sales partner se communicate karein.
