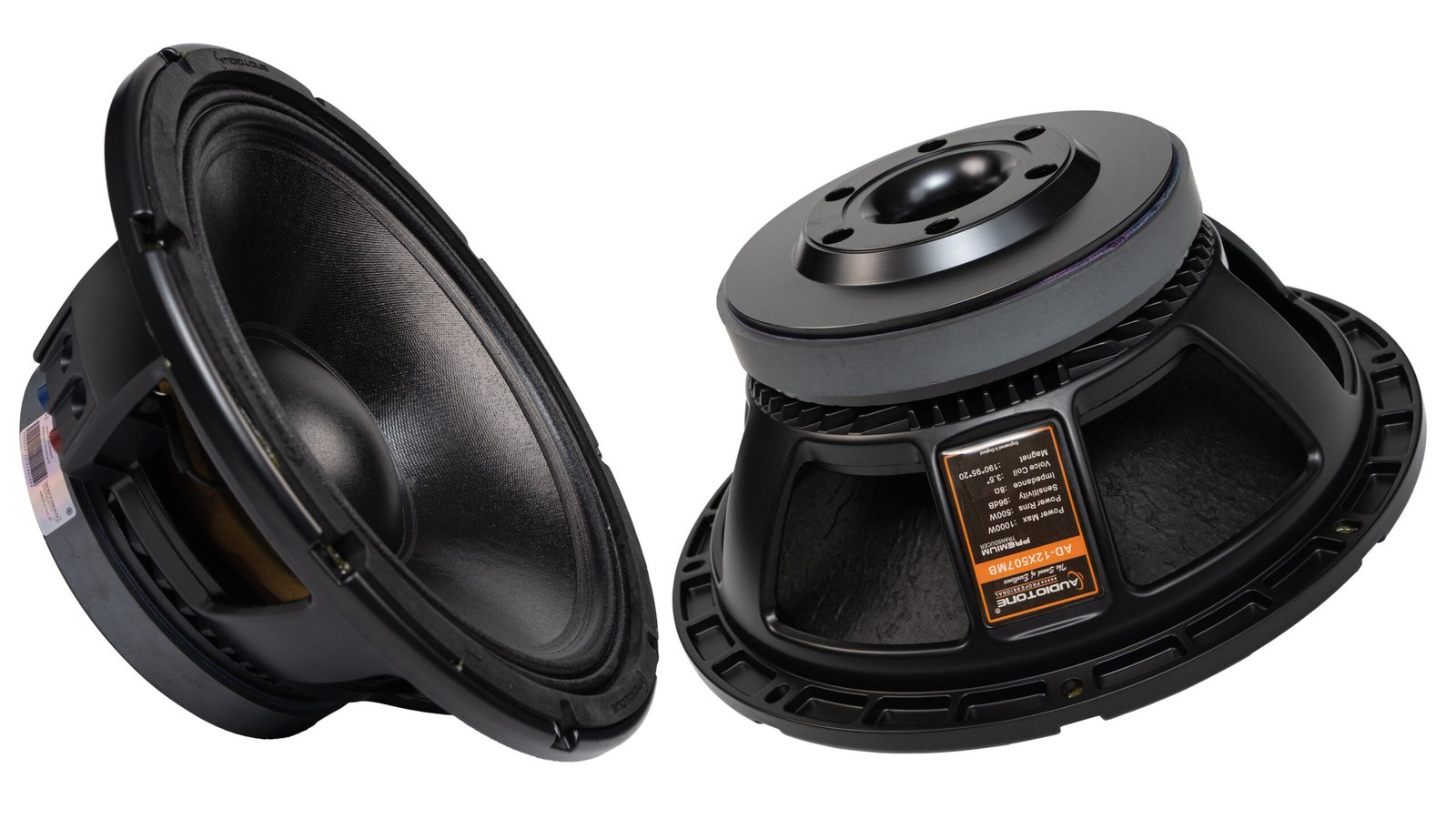

AD-12X507MB – 12-Inch High-Performance Woofer

The AD-12X507MB – 12-Inch High-Performance Woofer is a powerful, professional-grade 12-inch woofer designed for exceptional low-frequency performance, efficient power handling, and long-term reliability. Whether you’re building a subwoofer cabinet, upgrading your PA system, or designing a high-output sound reinforcement system, this woofer delivers the performance and durability demanded by audio professionals.

Built to handle serious power, the AD-12X507MB features a RMS power capacity of 500W and a peak handling of 1000W. At the heart of this woofer lies an 86.5mm (3.5″) CCAW voice coil, which offers outstanding thermal resistance and improved power handling. The voice coil’s lightweight construction enhances responsiveness, making it ideal for applications requiring tight, punchy bass and smooth low-mid reproduction.

With a frequency response of 45Hz to 3000Hz, the AD-12X507MB is capable of delivering deep sub-bass as well as detailed midrange clarity. It is perfect for both low-end-focused sound systems and full-range enclosures. The 96 ± 2dB sensitivity rating ensures high sound output even with moderate amplifier power, improving system efficiency without compromising clarity.

The Y35-grade ferrite magnet (190×95×20) delivers a strong and stable magnetic field. It ensures precise cone movement and clean, distortion-free sound, even at high sound pressure levels. This makes the AD-12X507MB an excellent choice for demanding audio environments. It performs reliably in live stage setups, touring systems, club installations, and large-scale events.

Constructed with a high-strength aluminium basket, this woofer offers excellent structural integrity and enhanced heat dissipation. The rigid frame supports the motor structure during extended use and reduces unwanted resonance, improving audio accuracy and stability. Weighing only 6.1 kg, it is relatively lightweight for its power class, making it easier to handle and install across a variety of cabinet types.

FAQ Section

1. What acoustic roles are best served by the 45Hz to 3000Hz frequency response?

A frequency bandwidth spanning 45Hz to 3000Hz is exceptionally wide for a heavy-duty 500W RMS 12-inch driver. It drops low enough into the sub-bass spectrum to handle critical kick drum thump and bass guitar fundamentals without needing an immediate crossover handoff. Simultaneously, it climbs smoothly into the low-midrange band, allowing it to maintain perfect vocal clarity before crossing over to a high-frequency compression horn.

2. What performance benefits does a 3.5-inch (86.5mm) CCAW voice coil bring over traditional copper coils?

A 3.5-inch voice coil provides a massive surface area for thermal dissipation, which prevents power compression during hours of continuous peak usage. By utilizing CCAW (Copper-Clad Aluminum Wire) instead of pure copper, the moving mass of the assembly is significantly reduced.

3. How does the combination of a Y35-grade magnet and a 190x95x20 mm motor structure affect acoustic control?

The Y35-grade ceramic ferrite magnet is highly saturated to deliver a dense, uniform magnetic flux field across the voice coil gap. Its physical dimensioning (190mm outer diameter) creates an intensely powerful motor assembly. This high magnetic force acts as an absolute brake and accelerator for the cone, giving the speaker superior mechanical command over its physical displacement.

4. How should a system designer configure active crossovers and DSP protection for a 500W RMS driver of this class?

To protect the suspension from mechanical damage while preserving the driver’s rich low-end capabilities, precise DSP filtering is essential. For general standalone use, set a High-Pass Filter (HPF) between 45Hz and 55Hz utilizing a sharp 24dB/octave Linkwitz-Riley or Butterworth slope to prevent destructive over-excursion below the tuning frequency of the cabinet..

5. Why is a rigid aluminum basket framework necessary for a driver handling a 1000W peak threshold?

When a transducer handles 500W RMS and reaches up to 1000W peak thresholds, the internal mechanical stresses generated by the motor are immense. A stamped steel basket can flex under these heavy physical dynamics or during rough transport, which compromises the microscopic alignment of the voice coil. A high-strength die-cast aluminum basket provides an immovable, rigid platform that eliminates structural distortion.
