AD-15X825G

Q1: What are the main power handling ratings and core specifications of the Audiotone AD-15X825G loudspeaker?

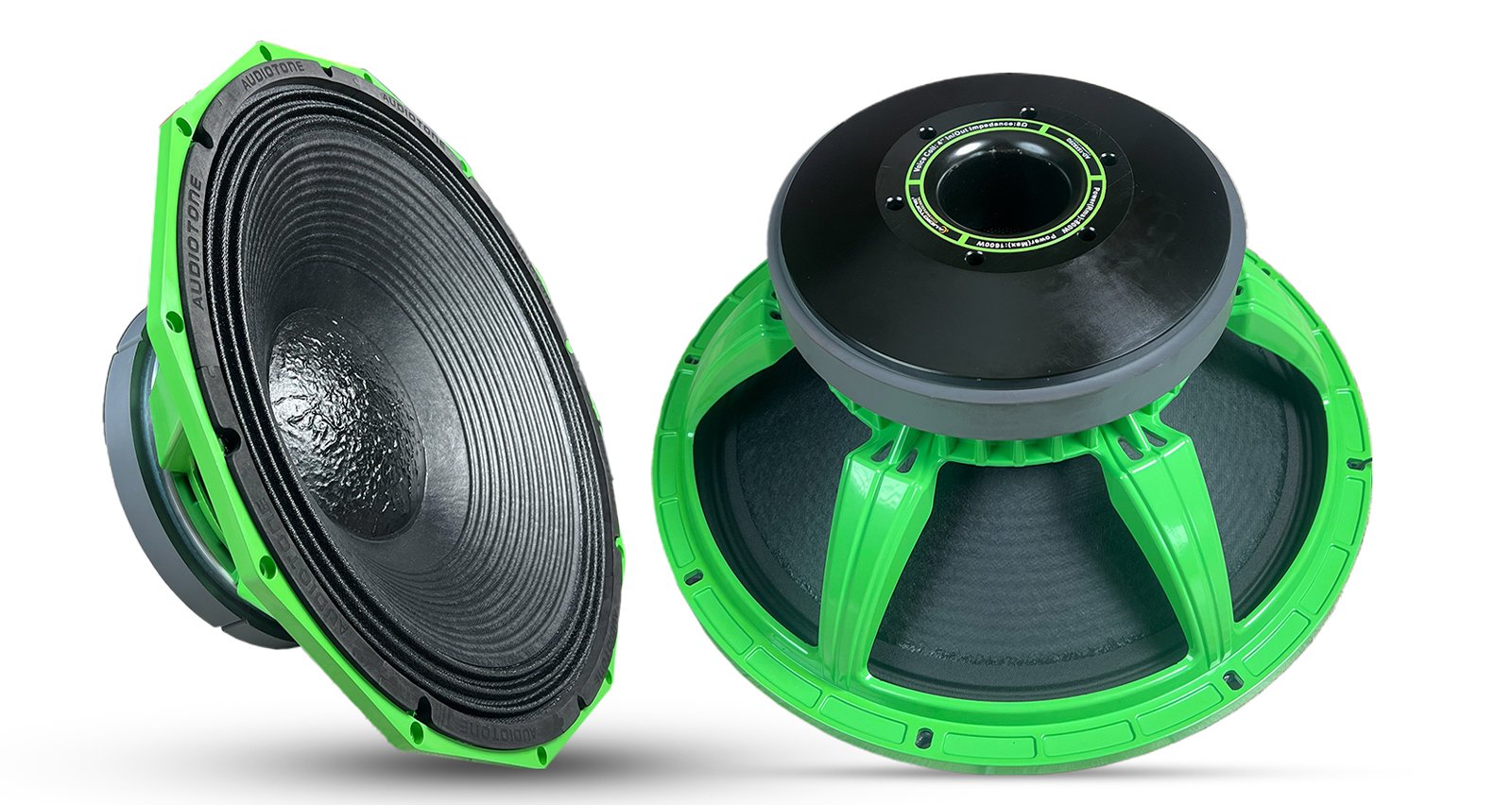

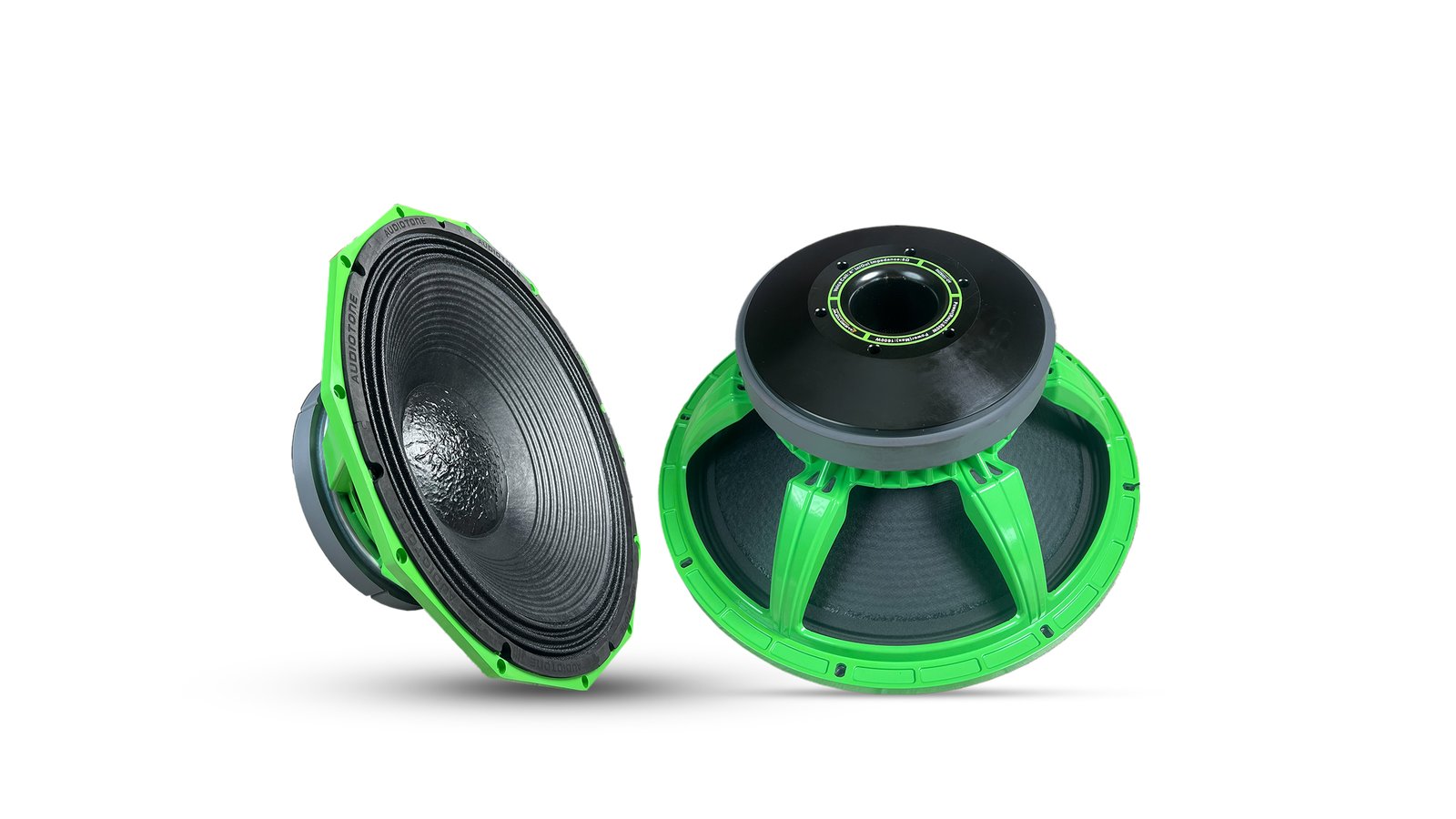

A: The Audiotone AD-15X825G is an ultra-high-output 15-inch professional transducer engineered for premium touring rigs, heavy-duty DJ setups, and high-SPL sound reinforcement. It features an impressive continuous power handling of 800 Watts RMS and can safely manage up to 1600 Watts Continuous Maximum power loads.

Q2: How does the 4-inch inside/outside voice coil configuration protect the AD-15X825G under heavy stress?

A: This driver relies on a precision-engineered 4-inch (100mm) inside/outside copper voice coil wound onto a premium, high-temperature fiberglass former. By wrapping the copper windings on both the inner and outer walls of the central cylindrical cylinder, the total wire surface area exposed to cooling channels is doubled.

Q3: What type of magnet structure drives the high-power motor assembly of this speaker?

A: The heavy-duty motor system of the AD-15X825G is driven by an immense, optimized Y35-grade ceramic ferrite magnet measuring 220 × 110 × 25 mm. The premium Y35 grade offers superior magnetic flux density within the voice coil gap compared to standard, lower-tier magnets.

Q4: Over what frequency range does the AD-15X825G operate, and what roles does it fill best?

A: The speaker boasts a versatile and highly optimized operational frequency range stretching from 40Hz to 2500Hz. This specific bandwidth makes it an absolute powerhouse for 2-way or 3-way full-range PA cabinets, dual-15 inch mid-bass arrays, and high-power live stage monitors.

Q5: What are the structural and mechanical advantages of the aluminum basket design used in this model?

A: The driver features a heavy, rugged, die-cast aluminum basket that forms an unyielding skeleton for the massive 220mm magnet and cone assembly. Pressed-steel frames often flex or warp under the violent vibrations of 800W RMS power loads, pulling the voice coil out of alignment and causing it to scrape the gap.
