AD- 1588PD AVENGER

Nominal Dia.

15*/390 Inch/MM

Impedance

8Ω Ohms

Power RMS

1800 Watts

Power MAX

3600 Watts

Voice Coil

5" In/Out Inch

Magnet

280*140*25

Frequency

47Hz~1.8Khz Hz~Khz

Sensitivity

95 db

Gross WT.

21 KG

    Have a question?




    Category:
    Loading...

    Description

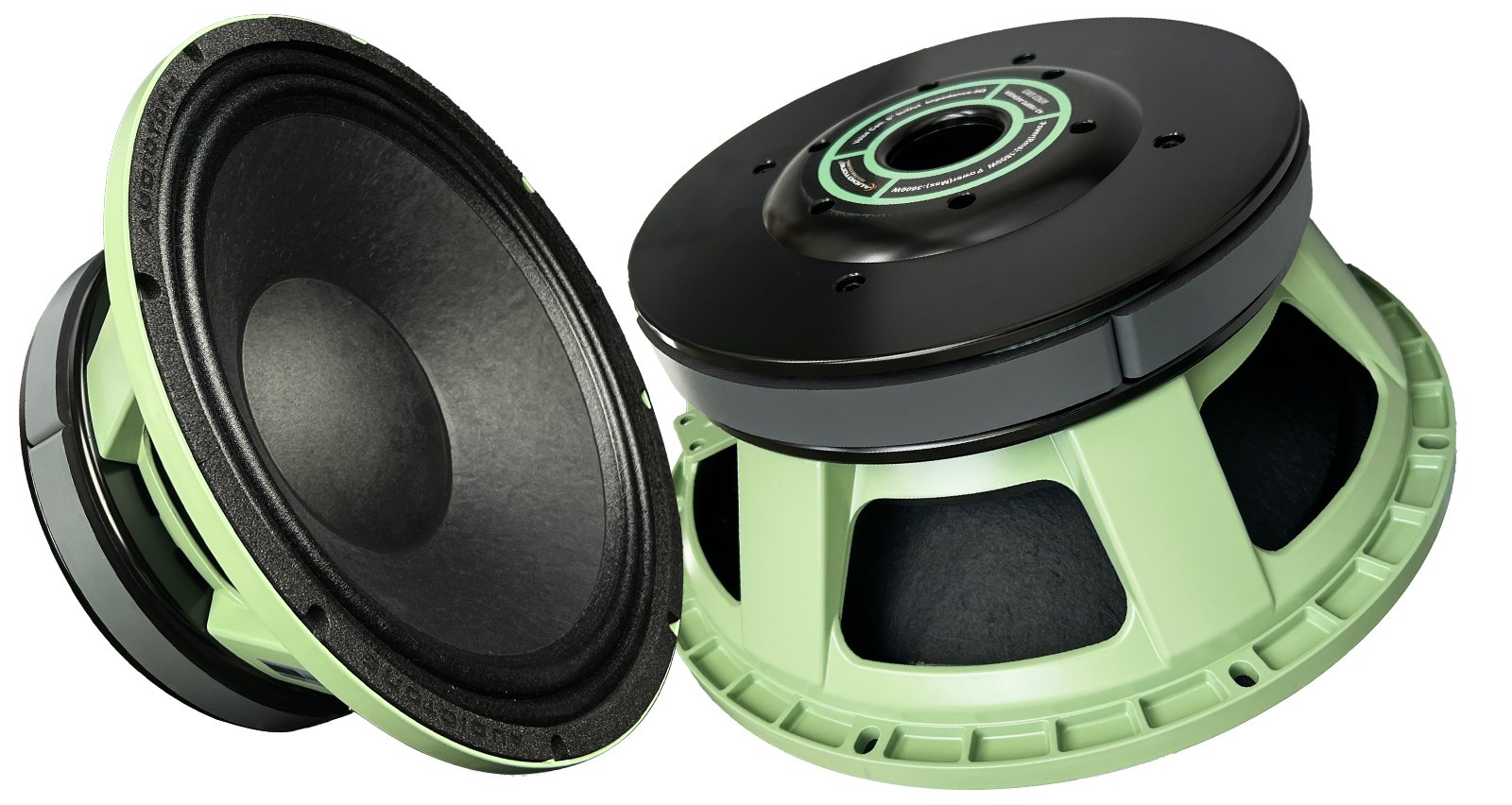

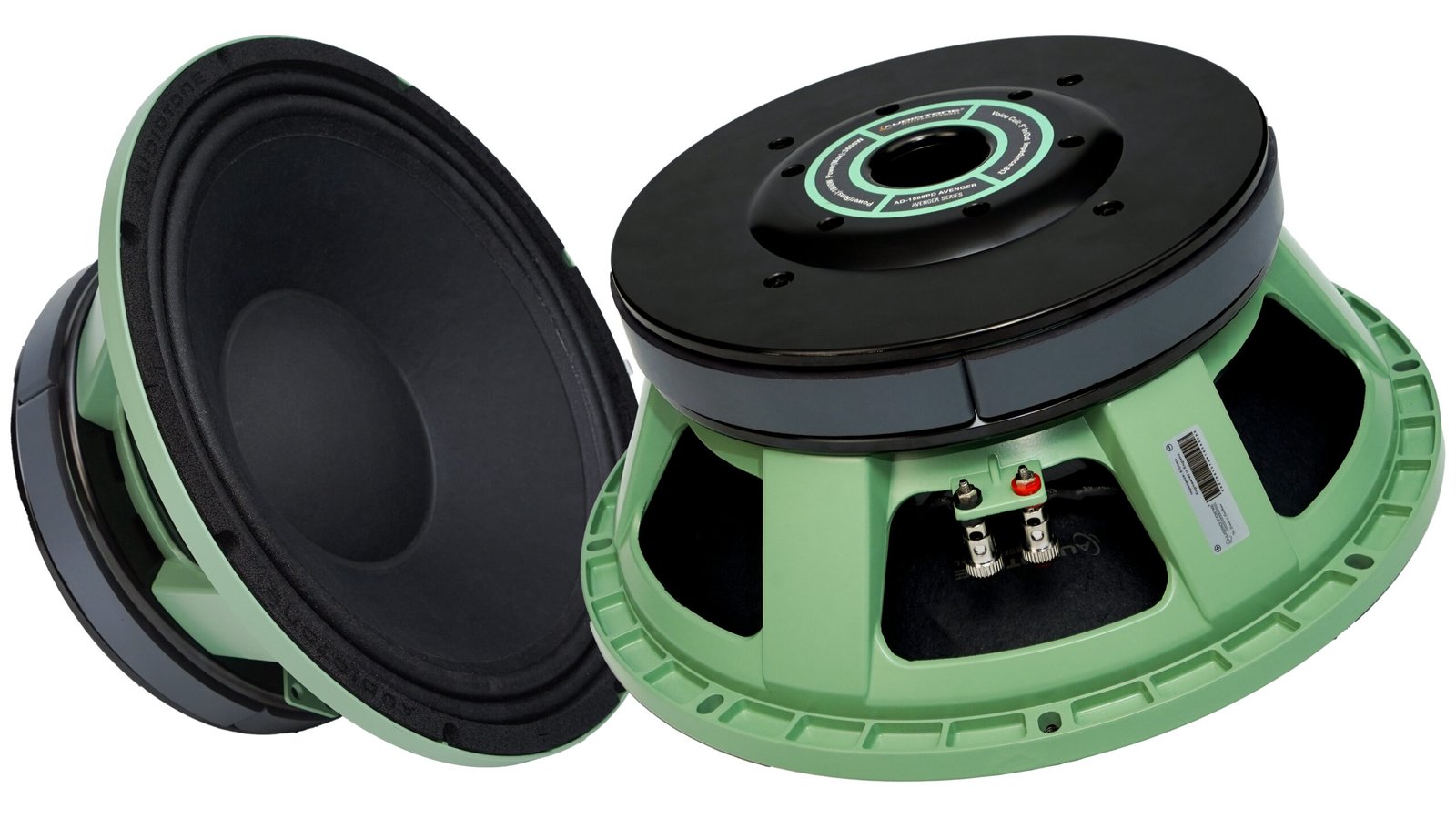

    Unleash the Power of the Avenger | 1588PD AVENGER New Launch!

    When ordinary drivers fail to keep up with the extreme demands of modern live sound, the newly launched Audiotone AD-1588PD AVENGER steps into the arena. Engineered for high-end touring rigs, high-impact DJ competition setups, and massive outdoor sound reinforcement systems, this 15-inch heavy-duty driver is a true force of nature.

    Combining an incredible 1800W RMS power rating with a colossal 5-inch voice coil, the AVENGER is meticulously designed to deliver relentless, bone-crushing low-frequency impact and a devastatingly powerful mid-bass punch.

    Key Product Highlights

    • Massive 1800W RMS / 3600W MAX Power: Built to sustain an enormous 1800 Watts of continuous RMS power and handle transient peaks of up to 3600 Watts, ensuring flawless execution under extreme operational loads.

    • Colossal 5-Inch Inside/Outside Voice Coil: Featuring an advanced 5″ inside/outside winding voice coil assembly, this driver provides unparalleled thermal stability, drastically reducing power compression during grueling hours of playback.

    • Heavyweight High-Flux Magnet Structure: Utilizing a massive $280 \times 140 \times 25 \text{ mm}$ high-grade magnet assembly, the AVENGER generates massive motor strength to keep cone excursion tight, precise, and completely controlled.

    • Tour-Grade Tour de Force: Weighing in at a rock-solid 21 KG (Gross Weight), its rugged physical framework is optimized to neutralize enclosure vibrations and effortlessly survive the punishing realities of mobile roadshows and transport.

    Frequently Asked Questions (FAQs)

    1.Audiotone AD-1588PD AVENGER 15-inch woofer driver ki RMS/MAX power handling capabilities aur impedance specs kya hain?
    Audiotone AD-1588PD AVENGER ek high-output 15-inch (390 mm) professional low-frequency transducer driver hai. Iski continuous power rating 1800W RMS power handling aur 3600W MAX peak power handle karne ke liye designed hai. 8Ω nominal impedance configuration hone ke karan yeh high-power mid-bass enclosures, heavy DJ tops, aur dual 15-inch speaker cabinets ke liye ideal match hai.

    2.5-inch In/Out voice coil aur massive magnet (280×140×25 mm) thermal endurance aur power handling ko kaise improve karte hain?
    Is driver mein massive 5-inch Inside/Outside winding voice coil technology utilize ki gayi hai jo extra-large 280 × 140 × 25 mm magnet structure ke sath integrated hai. 5-inch large coil diameter aur dual-layer exposure high-wattage power transients par heat dissipation speed-up karti hain, jisse continuous high-volume performance par power compression aur voice coil overheating risk eliminate hota hai.

    3.47Hz–1.8kHz frequency response curve aur 95dB sensitivity rating acoustic output ko kaise enhance karte hain?
    AVENGER series driver mein dedicated 47Hz se 1.8kHz wide frequency bandwidth tune ki gayi hai. Is broad response profile ki wajah se yeh transducer deep low-end punch (47Hz) se le kar punchy mid-bass aur vocal clarity (1.8kHz) tak seamlessly reproduce karta hai. Iski 95dB (1W/1m) sensitivity heavy acoustic throw output convert karti hai.

    4.Is 1800W RMS 15-inch speaker driver ke liye best amplifier matching aur crossover setup parameter kya honge?
    Is 1800W RMS (8Ω) driver unit ko proper headroom ke sath drive karne ke liye 2000W se 2800W RMS per channel @ 8Ω output output offer karne wale power amplifiers (jaise Audiotone ADMT-1802, XT-8000, ya Z-Series AD-9100) recommended hain. DSP crossovers par 45Hz–50Hz High-Pass Filter (HPF) cutoff apply karke low-frequency cone over-excursion damage prevent kiya ja sakta hai.

    5.Audiotone AD-1588PD AVENGER driver ka current price check, authentic product validation, aur dealership details kaise confirm karein?
    Is commercial transducer driver ki market price regional freight charges, localized dealer margins, aur state GST application par align karti hai. Official technical specifications verify karne, genuine product authentication check karne, aur direct authorized regional dealer connections fetch karne ke liye official brand platform audiotone.co.in par visit karein ya localized Audiotone channel partners se communicate karein.
