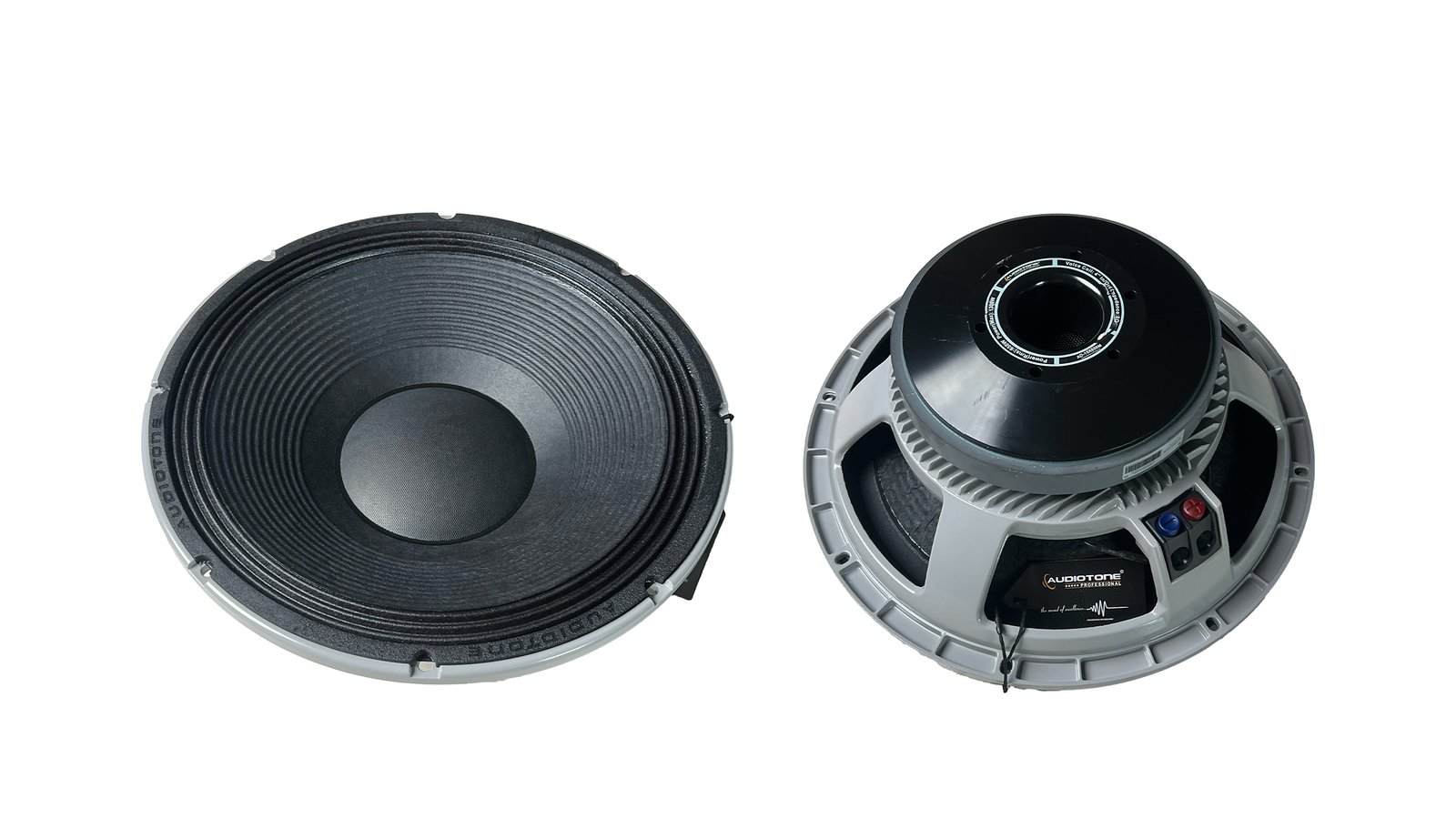

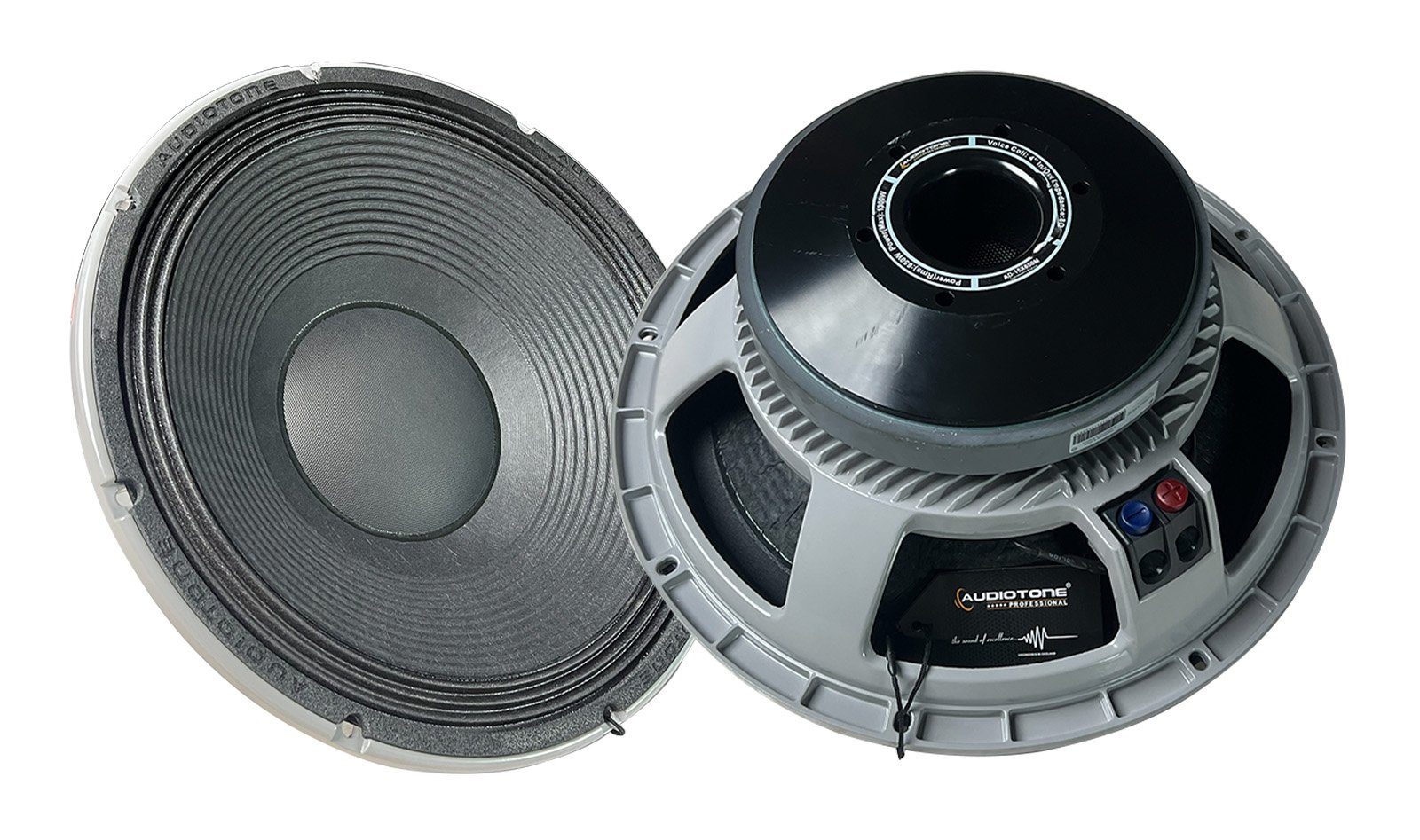

Audiotone AD-15X650M | 15-Inch 650W Professional Speaker Driver

Upgrade your sound system with the Audiotone AD-15X650M, a premium 15-inch speaker driver built for high-performance audio. Whether you are building a custom PA cabinet or replacing a mid-bass woofer, this component delivers the power and clarity professional sound engineers demand.

Power Meets Precision

The AD-15X650M is a heavy-duty 15-inch (395mm) transducer designed to handle the rigors of live sound. With a 650W Power Rating and a massive 1300W Max Power, this driver provides deep, punchy bass and crystal-clear mid-range frequencies.

Key Performance Specs:

• Size: 15 Inch (395mm) – Ideal for professional PA tops and bass bins.

• Voice Coil: Large 4-inch (100mm) diameter for superior heat management.

• Sensitivity: 96dB (1W-1m) – High efficiency means more sound with less power.

• Frequency Range: 49Hz to 2000Hz – Perfect for mid-bass punch and vocal clarity.

Why Choose the Audiotone AD-15X650M?

1. Advanced 4-Inch In/Out Voice Coil

Most standard speakers fail because they overheat. The AD-15X650M features an In/Out winding layer on a 4-inch voice coil. This design allows the speaker to stay cool even during long hours of use, ensuring your music never loses its “thump.”

2. High Sensitivity for Maximum Output

With a 96dB sensitivity rating, this driver is highly efficient. It converts electrical power into loud, clean sound more effectively than standard drivers, making it a perfect fit for large venues and outdoor events.

3. Built for Durability

Audiotone products are trusted by professionals across the country. The AD-15X650M is built with an 8Ω impedance, making it compatible with a wide range of professional power amplifiers.

Technical Specifications

Ideal Applications

• Live Sound PA Systems: Great for FOH speakers and line arrays.

• Stage Monitors: Provides the mid-range punch needed for vocalists.

• DJ & Club Sound: Reliable performance for heavy bass and high-volume nights.

Get the Best Price on Audiotone Drivers

Ready to take your audio to the next level? The AD-15X650M offers the perfect balance of price and professional performance.

FAQ Section

1. Is it better to mount this speaker in a plywood box or a plastic (ABS) cabinet?

For a high-power mid-bass driver like this, a 15mm or 18mm Birch Plywood enclosure is highly recommended. Plywood handles intense air pressure and heavy vibrations beautifully, delivering a tight, natural bass punch. Lightweight plastic (ABS) cabinets tend to flex and rattle (known as cabinet resonance) at high volumes, which dampens the speaker’s true punch and muddies the sound.

2. Should I pair this driver with a small 1-inch tweeter or a larger 2-inch compression horn?

You should always pair this powerful 15-inch driver with a larger 1.5-inch or 2-inch high-frequency compression driver. Small 1-inch tweeters cannot keep up with the massive acoustic output of this mid-bass cone and will easily get drowned out or overheat at high volumes. A larger horn driver ensures a balanced sound profile and carries vocals over long distances clearly.

3. Will the speaker get ruined instantly if the cone paper gets exposed to light rain or outdoor humidity?

No, the paper cone comes with a specialized weather-resistant coating that protects it against high humidity, dampness, and light environmental moisture during outdoor gigs. However, while it is splash-resistant, it is not 100% waterproof. You should still protect the front grid from direct heavy downpours to prevent the paper pulp from absorbing water and losing its structural shape.

4. When building a dual-15 cabinet, should both speakers share the same empty box space?

It is highly recommended to build an internal center partition (divider brace) so each 15-inch driver operates in its own sealed chamber. If two high-power speakers share the exact same unpartitioned air cavity, the internal back-pressure and intense vibrations can cause the cones to fight each other. This results in phase cancellation, which drastically cuts down your low-end punch.

5. Is it safer to solder the amplifier wires directly onto the push terminals or just insert bare wire?

It is best to insert clean, bare twisted wire directly into the integrated push-type spring terminals without soldering. Soldering fills the wire strands and turns the end into a solid, brittle piece of metal. Under the intense, continuous physical vibrations of a live sound event, a rigid soldered wire end is much more likely to fracture, break, or lose a clean contact compared to flexible bare copper.
