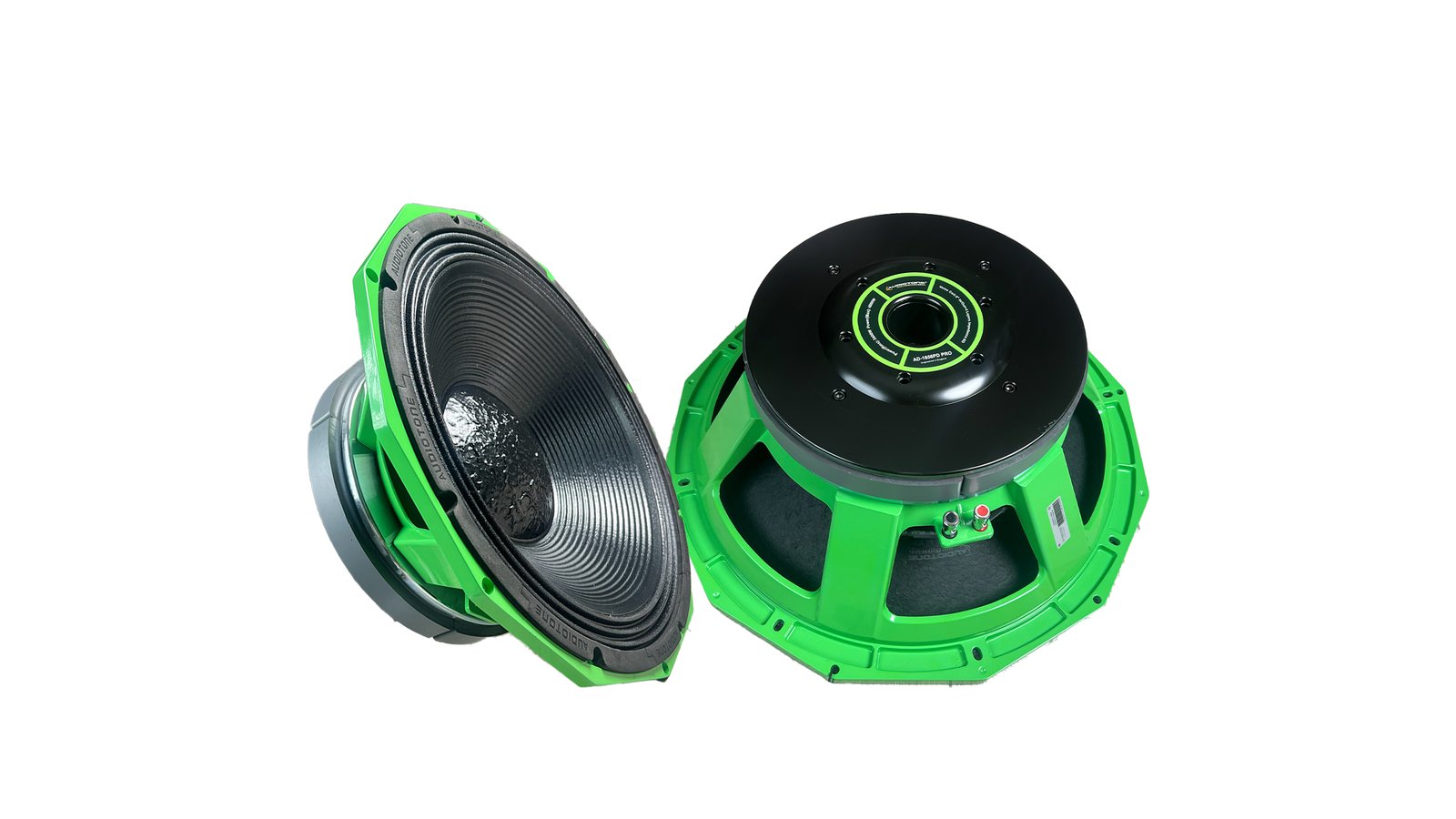

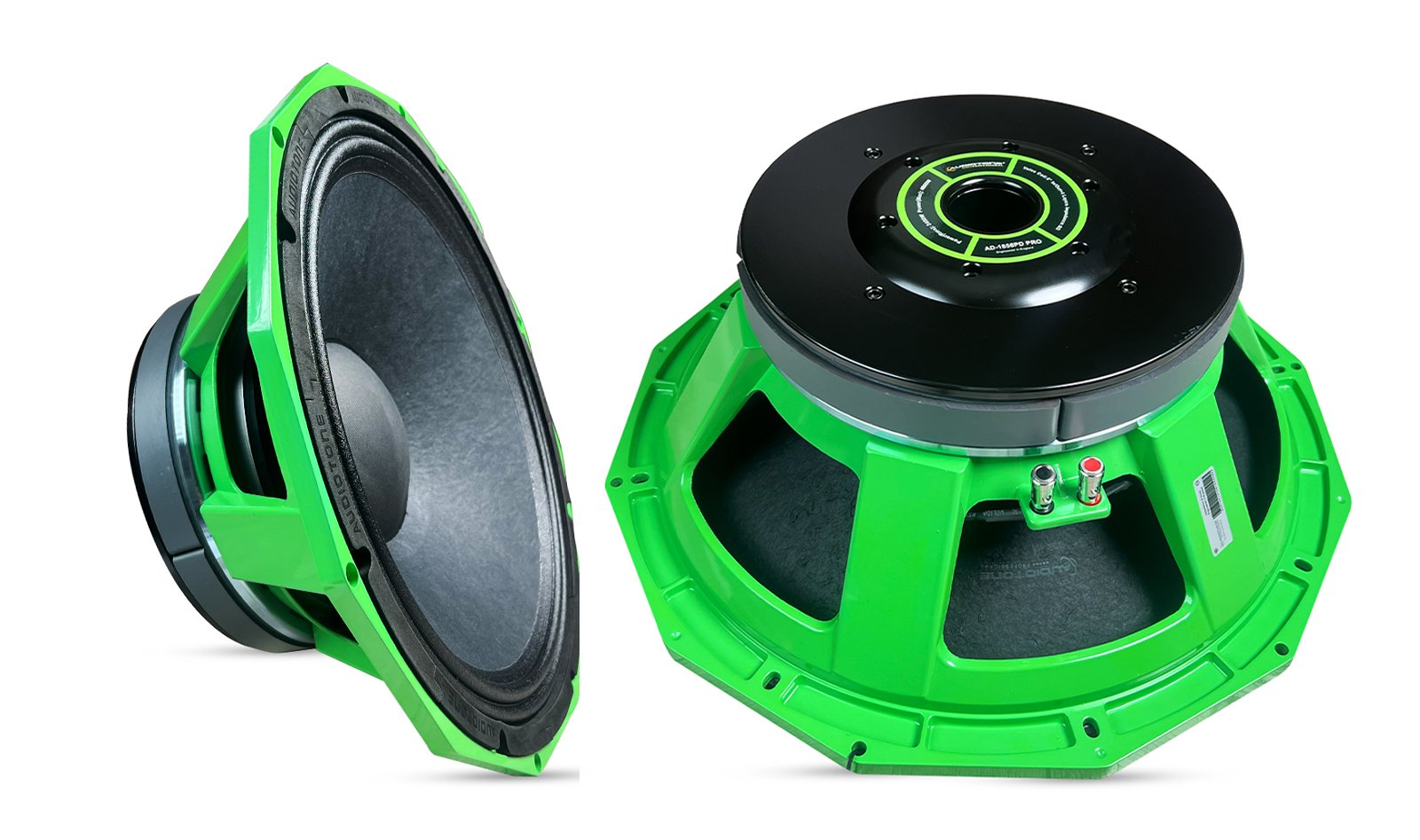

Audiotone AD-1856PD PRO | 18-Inch 2400W Driver Component
If you are looking for ground-shaking bass and relentless power, the Audiotone AD-1856PD PRO is the ultimate 18 inch 2400W Driver Component. Specifically engineered for high-pressure touring systems and massive club installations, this professional sound system sets a new standard for low-frequency performance.
Extreme Power for Professional Sound
The AD-1856PD PRO is not just a speaker; it is a high-performance high-power 18-inch transducer. Designed to handle a staggering 2400W RMS and up to 4800W Peak Power, this driver delivers deep, cinematic bass that stays clean even at extreme volumes.
Why the AD-1856PD PRO Stands Out:
-
Massive 5-Inch Voice Coil: Equipped with a 5 inch voice coil subwoofer design using In/Out + 4-layer technology. This allows for maximum heat dissipation and superior motor strength.
-
Heavy-Duty Magnet: A massive 280mm magnet ensures tight control over the cone, resulting in precise, punchy bass without distortion.
-
Extreme Sensitivity: With a 98dB sensitivity, this driver is incredibly efficient, converting raw power into massive acoustic output.
-
Built Like a Tank: Weighing in at 23.6 KG (Gross Weight), the solid construction is designed to withstand the physical demands of high-SPL environments.
Technical Specifications
| Feature | Specifications |
| Model | Audiotone AD-1856PD PRO |
| Nominal Diameter | 18 Inch / 487 mm |
| Nominal Impedance | 8Ω |
| Power Rating (RMS) | 2400 Watts |
| Maximum Power (Peak) | 4800 Watts |
| Voice Coil Diameter | 5 Inch (In/Out + 4 Layers) |
| Magnet Size | 280 x 140 x 25 mm |
| Sensitivity (1W/1m) | 98 dB |
| Gross Weight | 23.6 KG |
Professional Applications
The Audiotone AD-1856PD PRO is the heart of any high-end sound reinforcement system. It is the perfect choice for:
-
Touring Sub-Bass Enclosures: Perfect for large-scale outdoor concerts and festivals.
-
Nightclub Sound Systems: Delivers the consistent, heavy-duty low end required for modern electronic music.
-
Cinema & Large Auditoriums: Provides the deep sub-harmonics needed for immersive audio experiences.
Upgrade Your Bass Performance
Don’t settle for average low-end. The Audiotone AD-1856PD PRO provides the reliability and “chest-thumping” power that professional sound engineers trust. With its advanced cooling and massive motor structure, it is built to outperform the competition.
FAQ Section
1. Audiotone AD-1856PD PRO 18-inch subwoofer driver ki continuous RMS wattage capability aur power handling parameters kya hain?
Audiotone AD-1856PD PRO ek ultra-heavy-duty, extreme-power 18-inch (487 mm) professional sub-woofer transducer driver hai. Iski official continuous power handling capacity 2400W RMS hai, jabki peak wattage handling capacity 4800W MAX tak jaati hai. 8Ω nominal impedance format ke sath, yeh extreme high-SPL bass-reflex, scoop, horn-loaded, aur dual 18-inch touring subwoofer enclosures ke liye top-tier flag-ship option hai.
2. 5-inch (In/Out + 4 Layers) voice coil architecture aur heavy magnet (280×140×25 mm) thermal load endurance ko kaise manage karte hain?
Is driver mein massive 5-inch Inside/Outside winding + 4-layer technology voice coil construct ki gayi hai jo extra-large 280 × 140 × 25 mm ferrite magnet assembly ke sath operate hoti hai. Extended 4-layer winding structure aur dual-sided coil surface exposure extreme continuous high-wattage spikes par maximum electrical-to-thermal dissipation efficiency deliver karte hain, jisse power compression completely minimize ho jata hai aur voice coil burnout risk prevent rehta hai.
3. 4800W MAX handling aur 98dB sensitivity sub-bass pressure ko kaise strengthen karte hain?
Is transducer mein 98dB (1W/1m) sensitivity rating feature ki gayi hai. High thermal endurance aur 98dB sensitivity optimization ki wajah se, yeh driver continuous high-power stress condition mein chest-thumping sub-bass rumble aur massive sound pressure levels (SPL) yield karta hai, jo heavy DJ competition setups aur stadium sound applications ke liye uncompressed deep bass projection offer karta hai.
4. 23.6 kg gross weight heavy build ke structural advantages aur recommended crossover setup parameters kya hain?
Is driver ka structural design 23.6 kg gross weight wale heavy-duty rigid die-cast chassis frame par base karta hai, jo extreme mechanical cone excursion par chassis flex, frame vibration, aur magnetic flux leakage ko completely eliminate karta hai. High-SPL subwoofer setups ke liye, DSP crossover par 30Hz–35Hz High-Pass Filter (HPF – 24dB/oct Butterworth/Linkwitz-Riley) aur 80Hz–110Hz Low-Pass Filter (LPF) band-pass settings tune karne ki recommendation di jaati hai.
5. Audiotone AD-1856PD PRO 18-inch driver ka current market price check, authentic product validation, aur regional dealer support kaise obtain karein?
Is commercial transducer driver ka purchase cost regional transportation charges, localized distributor margins, aur state GST application par align karta hai. Official technical datasheets verify karne, authentic product serial track karne, aur direct authorized regional distribution network access karne ke liye official brand platform audiotone.co.in par visit karein ya nearest authorized Audiotone sales partner se communicate karein.
