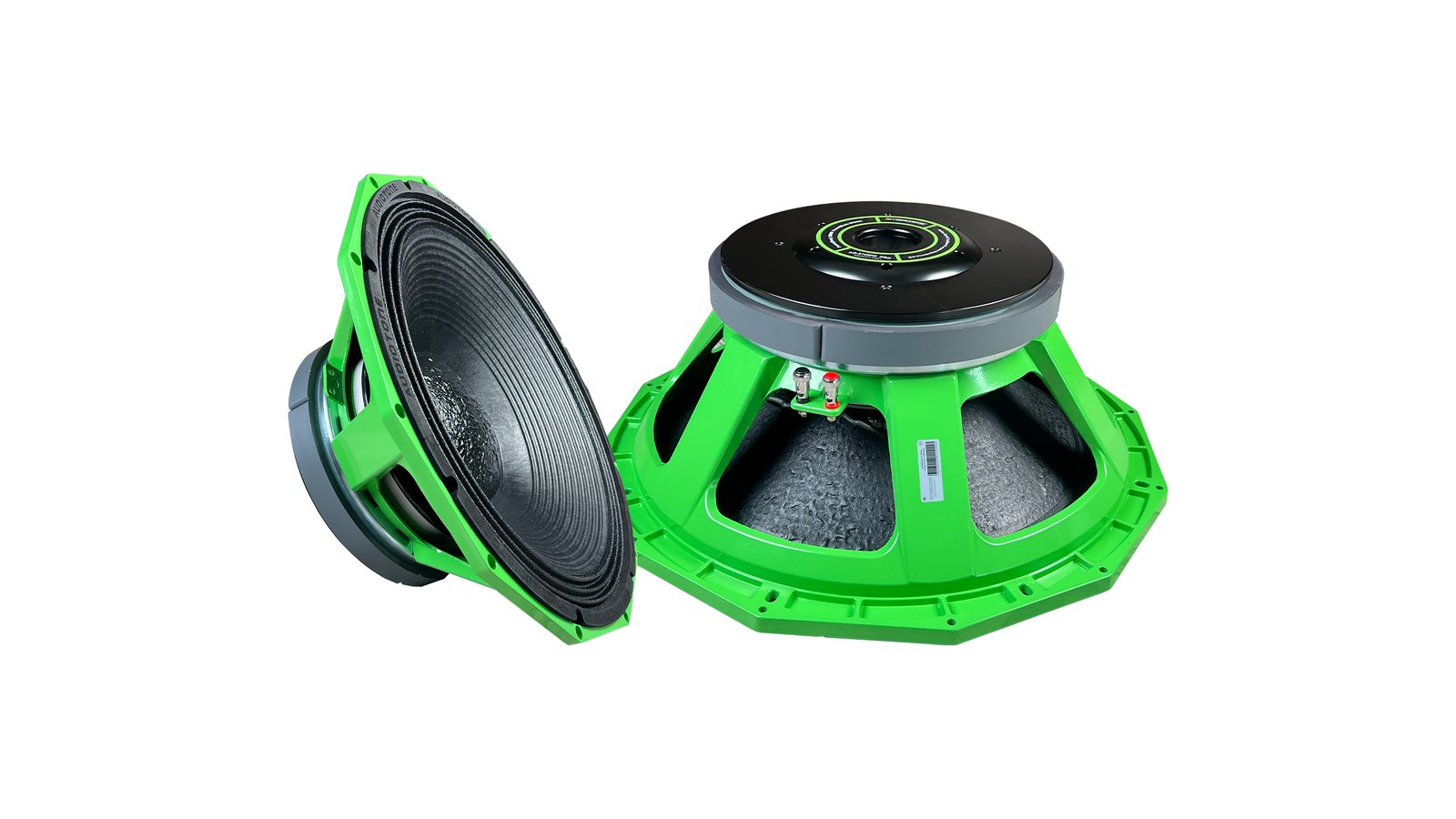

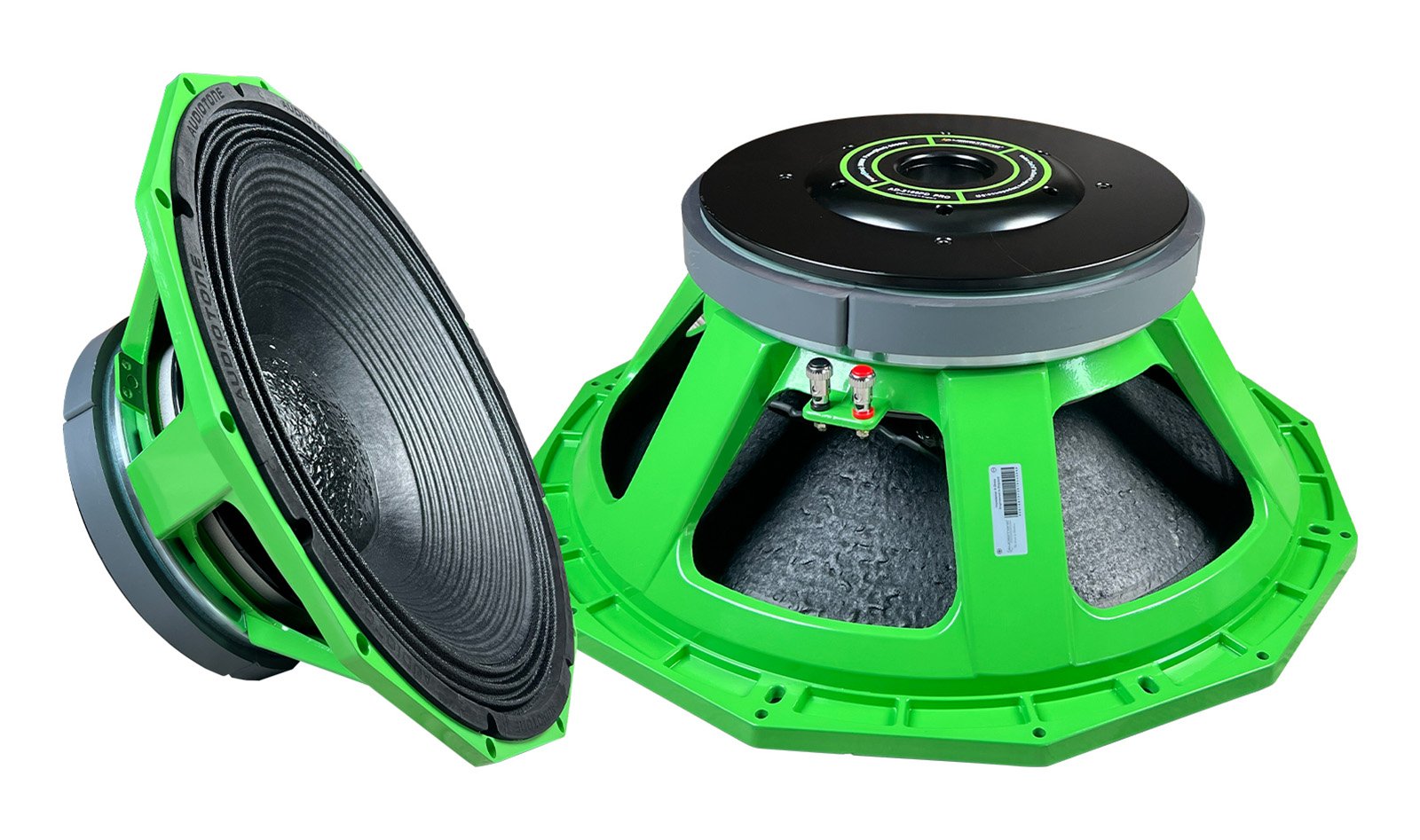

Audiotone AD-2166PD PRO | 21-Inch 3000W High-Power Driver Component

Experience ground-shaking bass with the Audiotone AD-2166PD PRO. Engineered for extreme performance, this 21 inch 3000W driver component is designed for those who need maximum displacement and unmatched power handling in professional sound reinforcement.

Engineered for Extreme Bass

The AD-2166PD PRO is not just a speaker; it is a high-performance professional audio transducer. With a 3000W RMS rating and a staggering 6000W Peak Power, this driver is built to anchor the largest concert systems and club installations.

Advanced 6-Inch Voice Coil Technology

To handle such immense power, the AD-2166PD PRO features a massive 6-inch (152mm) Voice Coil.

• 4-Layer In/Out Winding: This sophisticated design provides superior thermal stability and mechanical strength.

• Enhanced Cooling: The large coil diameter and winding technique allow the driver to operate under extreme loads without losing performance.

Technical Specifications

Why Choose the AD-2166PD PRO?

1. Massive Magnet Assembly

Equipped with a 330mm magnet, this high-power PA component ensures total control over the cone. The result is tight, accurate bass even at the highest volume levels.

2. High Efficiency

Despite its size, the AD-2166PD PRO maintains a 96dB sensitivity. It efficiently converts high-wattage input into deep acoustic pressure, making it the perfect heart for a custom-built sub-bass enclosure.

3. Built Like a Tank

Weighing in at 35.9 KG, this driver is constructed with heavy-duty materials to withstand the physical demands of touring and permanent installations.

Professional Applications

• Touring Sound: Perfect for large-scale outdoor festivals.

• Cinema Sound: Delivers the ultra-low frequencies required for premium theater experiences.

• High-End Club Systems: Built for 24/7 reliability in demanding nightlife environments.

Upgrade Your Low-End Today

The Audiotone AD-2166PD PRO represents the pinnacle of bass engineering. If you are looking for a 6000W peak driver component that doesn’t compromise on quality, this is your solution.

FAQ Section

1. What acoustic advantages does a 21-inch subwoofer offer over a standard 18-inch subwoofer?

The primary advantage of a 21-inch driver is raw surface area displacement. A 21-inch cone has roughly 35% to 40% more surface area than an 18-inch cone, allowing it to move a significantly larger volume of air with less physical cone travel.

2. How do dual silicone suspension spiders maintain mechanical alignment in a 21-inch driver?

A 21-inch cone assembly carries significant physical weight, creating massive forward and backward momentum at high volumes. A single suspension spider would allow the voice coil to tilt or rock during extreme excursions, leading to catastrophic coil rubbing against the magnet structure.

3. Why is an inside/outside wound voice coil mandatory for ultra-high-power 21-inch motors?

Ultra-low frequencies require sustained electrical current from the amplifier, generating immense heat inside the motor assembly. An inside/outside voice coil uses an advanced manufacturing method where copper wire is wound on both the interior and exterior faces of the cylindrical former.

4. What are the specific enclosure construction demands for a 21-inch tour-grade subwoofer?

Because a 21-inch driver creates staggering internal pneumatic pressure waves, standard speaker cabinet designs will fail or flex heavily. Enclosures for a driver like the AD-2166PD PRO must be built using minimum 18mm to 24mm multi-layer premium birch plywood. Extensive internal matrix bracing is required to stiffen the walls.

5. How should a sound engineer set the High-Pass Filter (HPF) on a DSP for a 21-inch sub-bass bin?

To maximize the life of a 21-inch driver, the Digital Signal Processor (DSP) must be configured with a strict sub-sonic protective filter. Below the port tuning frequency of the cabinet, the air inside no longer dampens the cone, causing the speaker to “unload” and wobble uncontrollably.
