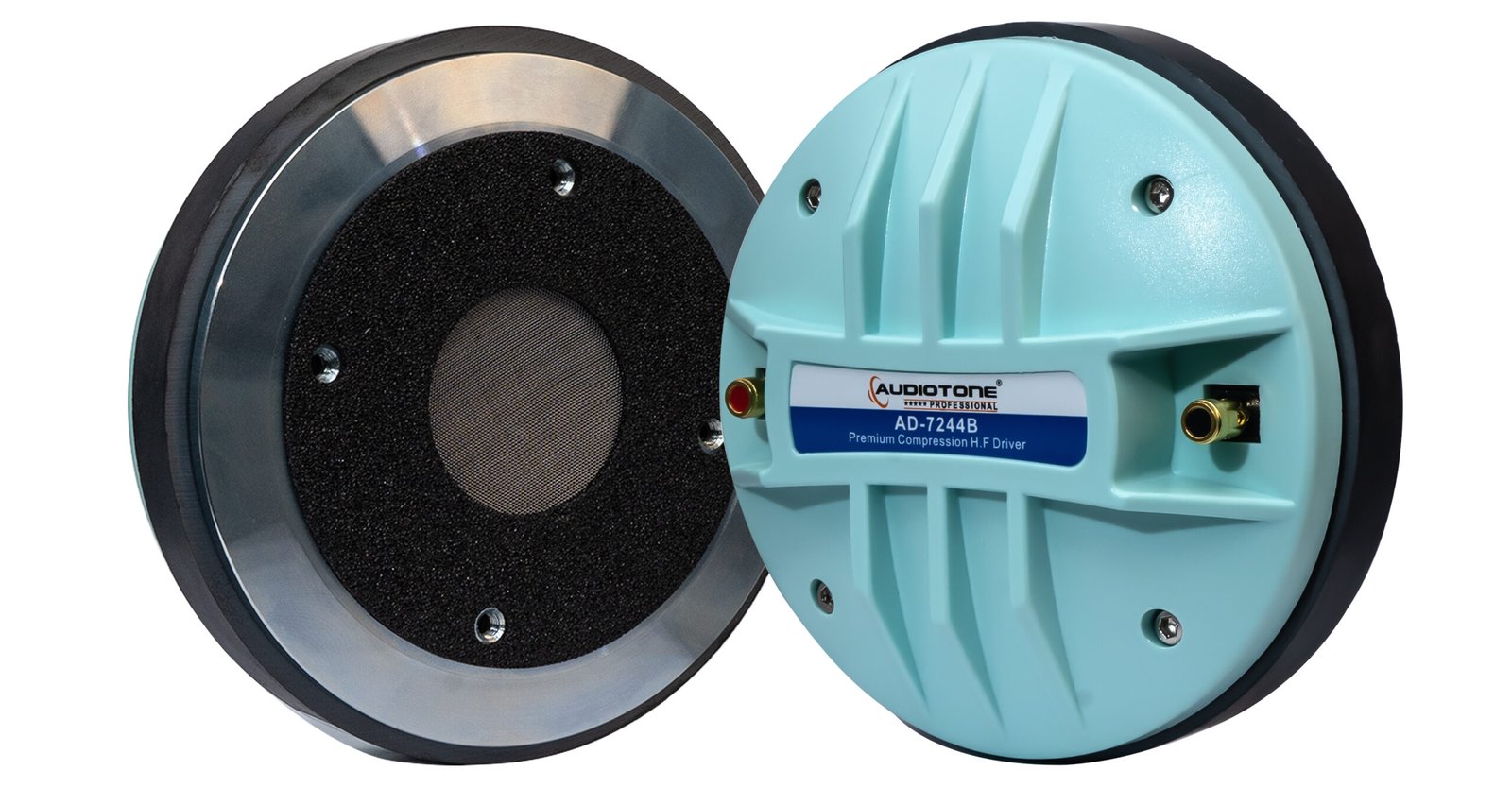

AD-7244B

Frequently Asked Questions

1.Audiotone AD-7244B HF Compression Driver ka price kya hai?
Is 120W RMS high-power HF compression driver ka market price dealer location aur current stock availability ke hisab se vary karta hai. Current pricing aur best discount offer ke liye nearest authorized Audiotone dealer se contact karein.

2.Audiotone AD-7244B HF driver kitne watt, ohm, aur throat diameter ka hai?
Yeh heavy-duty High-Frequency compression driver 120 Watt RMS power capacity, 8-ohm nominal impedance (6-ohm DC resistance), aur large 2-inch (50mm) throat diameter ke sath aata hai, jo high-output HF horn flares par mount hone ke liye design kiya gaya hai.

3.Audiotone AD-7244B HF unit ke sath konsa crossover network ya DSP setting lagani chahiye?
Is 3-inch voice coil driver ko voice coil damage aur thermal failure se bachane ke liye 1.0kHz se 1.5kHz cutoff range wala heavy-duty passive crossover network plate ya active DSP mein high-order High-Pass Filter (HPF) use karna zaroori hai.

4.Audiotone AD-7244B HF driver kis type ke sound cabinet aur setup ke liye best hai?
Yeh 800Hz se 20kHz tak wide frequency range aur high 108dB sensitivity output deliver karta hai, jo isse heavy Dual 15-inch DJ tops, high-power line array modules, aur outdoor long-throw concert cabinets mein crisp vocal clarity aur sharp treble projection ke liye ideal banata hai.

5.Is AD-7244B HF unit mein voice coil aur magnet assembly specs kya hain?
Is driver mein 3-inch (72.5mm) CCAW (Copper-Clad Aluminium Wire) voice coil aur heavy Strontium Ferrite Y35 grade magnet assembly lagayi gayi hai, jo continuous high-SPL operation par minimal distortion aur high efficiency maintain karti hai.
