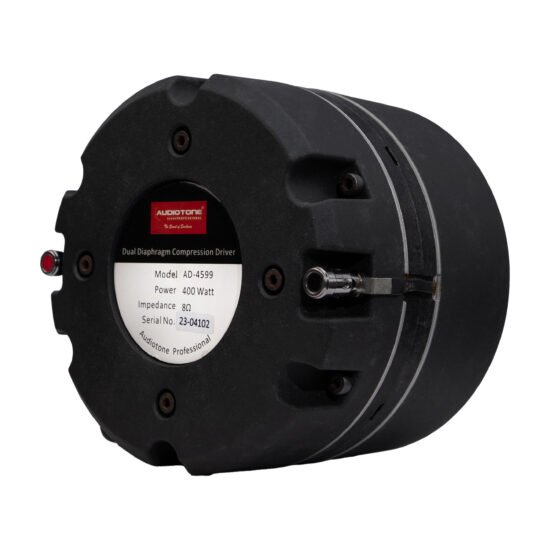

AD-4599EX PRO 2″ Neodymium Compression Driver

The AD-4599EX PRO 2″ Neodymium Compression Driver is a high-efficiency, high-power compression driver designed for premium professional audio applications. Built for touring systems, line arrays, and high-end PA setups, this unit delivers exceptional output, extended frequency response, and minimal distortion—making it the perfect choice for demanding environments where sound quality and performance are critical.

Exceptional Power Handling & Output

Engineered with a 2-inch (50.8mm) throat diameter, theAD-4599EX PRO 2″ Neodymium Compression Driver eatures dual 90mm voice coils, offering outstanding power capacity and thermal stability. It delivers a continuous AES-rated power of 450W, including 2×80W above 300Hz, ensuring consistent performance during extended use.

The AD-4599EX PRO delivers exceptional sensitivity, rated at 123dB (2×1W/1m) and 117dB at 1W/1m/2.83V. This ensures ultra-high efficiency, allowing the driver to produce powerful output with minimal amplifier load. It also reaches a maximum SPL of 135dB at 160W/1m/35.7V. As a result, it delivers loud, clear, and distortion-free sound, even in large venues.

Wide Frequency Range & Clarity

The driver covers a wide frequency range of 200Hz to 8000Hz. It delivers clear midrange and high-frequency response, making it ideal for vocals, cymbals, and instruments in complex mixes. Whether used in a stadium setup or a touring rig, the AD-4599EX PRO offers consistent precision and articulation across the entire frequency band.

Premium Components for Durability & Performance

The AD-4599EX PRO uses high-grade neodymium (N45 SH) magnets, producing a flux density of 1.95 Tesla. This creates a strong magnetic force while keeping the design compact and lightweight. The voice coils are made of copper and use wet winding on a Kapton former. This construction provides excellent heat resistance, mechanical durability, and stable performance under heavy loads.

The diaphragm is crafted from high-quality polyester polymide, offering a balanced combination of stiffness, damping, and reliability—critical for accurate high-frequency reproduction.

Mounting & Design Flexibility

This driver features a 4xM6 mounting pattern with a 90° layout on a 101.6mm bolt circle, making it compatible with a wide range of horn designs and enclosures. Weighing just 3.1kg, it offers a strong power-to-weight ratio ideal for touring professionals and fixed installations alike.

Audiotone AD-4599EX PRO Mid-Range Neodymium Compression Driver

Presenting the Audiotone AD-4599EX PRO — engineered with dual 90mm voice coils, N45 SH Neodymium magnet, and 450W AES power capacity to deliver 135dB Max SPL in a lightweight 3.1 Kg driver!

💥 Technical Specifications:

• Power Capacity (AES): 450W (2x 225W above 300Hz)

• Sensitivity: 123 dB (2x 1W/1m)

• Max Volume (SPL): 135 dB (160W/1m)

• Voice Coil: Dual 90 mm / 3.5″ (Copper, Wet Winding, Black on Kapton)

• Frequency Range: 200Hz ~ 8000Hz

• Nominal Impedance: 2x 16 Ω

• Throat Diameter: 50.8 mm / 2 inch

• Diaphragm Material: High Quality Polyester Polyimide

• Magnet Material: Neodymium / N45 SH (1.95T Flux Density)

• Mounting Type: 4x M6 holes (90° on 101.6 mm)

• Net Weight: 3.1 Kg

Large-scale concerts, roadshows, aur heavy outdoor DJ line-ups me vocal warmth aur high-impact mid-range coverage pane ke liye aaj hi upgrade karein.

Frequently Asked Questions (FAQs)

Q1. AD-4599EX PRO kis audio range aur setups ke liye engineered hai?

A: Yeh driver 200Hz ~ 8000Hz frequency band me dedicated mid-range response ke liye built hai, jo concert line arrays aur large horn-loaded mid boxes me clear vocal projection deta hai.

Q2. Dual 90mm voice coil aur 450W AES power handling ka kya faida hai?

A: Dual coil setup acoustic motor force aur heat dissipation badhata hai, jisse non-stop live event execution me 135dB Max SPL continuous, distortion-free output milta hai.

Q3. Neodymium N45 SH magnet aur 1.95T flux density se kya benefit hota hai?

A: High-grade N45 SH Neodymium magnet super-strong flux density aur thermal stability offer karta hai, jabki 3.1 Kg light weight setup flying line array rigs par overhead load kam karta hai.

Q4. Is driver ki impedance rating aur wiring configuration kya hai?

A: Isme 2x 16 Ω dual impedance terminals diye gaye hain, jise parallel connect karke 8 Ω load banaya ja sakta hai ya independent amplifier channels par run kiya ja sakta hai.

Q5. AD-4599EX PRO driver ke liye ideal crossover settings kya hone chahiye?

A: Driver safety aur optimum vocal body ke liye 300Hz se 400Hz (high pass) aur 6kHz se 7kHz (low pass) cutoff frequency filter set karna recommended hai.
