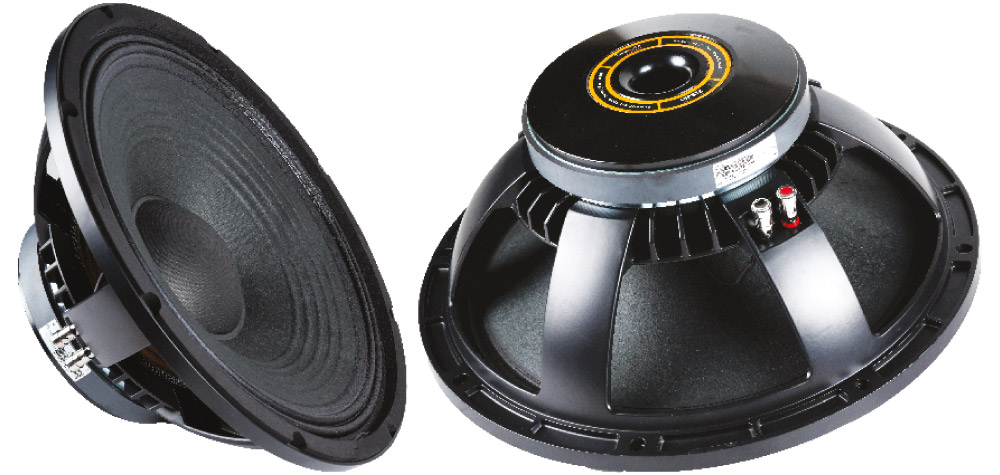

15PS76 – 15″ High-Excursion Woofer Driver
The 15PS76 – 15″ High-Excursion Woofer Driver woofer delivers powerful, clean, and reliable low-frequency sound for a wide range of professional audio needs. It works well in full-range PA systems, portable enclosures, and upgraded speaker cabinets. as much as This woofer offers more than just reliability. It combines power, efficiency, and durability to meet the demands of professional sound setups.
This woofer uses a 3″ (75mm) CCAW voice coil. The copper-clad aluminum wire improves thermal conductivity and reduces moving mass. The result is enhanced power handling, lower distortion, and extended performance over long periods of operation. It supports 450W RMS and 900W program power, making it ideal for medium to high-power systems.
The 15PS76 offers a frequency response of 38Hz to 4.5kHz. It covers a wide range of low and mid frequencies. This gives it the flexibility to perform in both subwoofer and mid-bass roles. Its 98dB sensitivity (1W/1m) ensures strong acoustic output with less amplifier power, increasing system efficiency.
The Y35 grade ferrite magnet (190×90×20mm) provides strong magnetic force for excellent cone control and transient response. Combined with a durable motor structure and lightweight design (7.6 kg / 16.8 lbs), the 15PS76 is a reliable and portable option for live sound, DJ setups, or fixed installations.
Its 8Ω nominal impedance and 5.3Ω DC resistance allow for easy integration into a variety of audio system designs. Whether you’re a sound professional or system integrator, the 15PS76 – 15″ High-Excursion Woofer delivers dependable, high-quality audio performance for today’s demanding sound environments.
FAQ Section
1.Audiotone 15PS76 speaker kitne watt power handle kar sakta hai?
Iska nominal power handling 450W RMS hai aur yeh program power mein continuous 900W tak ka heavy load easily handle kar sakta hai.
2.Is 15-inch speaker mein kis material ki voice coil lagi hai?
Isme 3-inch (75mm) CCAW (Copper-Clad Aluminum Wire) voice coil lagi hai, jo system ko excellent thermal reliability aur long life deti hai.
3.15PS76 ka frequency response kitna hai aur yeh kaisa sound deta hai?
Yeh speaker 38Hz se 4.5kHz tak frequency cover karta hai, jisse isme deep low-end bass ke sath clear vocal aur mid-range sound milta hai.
4.Is speaker ka total weight kitna hai aur magnet size kya hai?
Iska net weight sirf 7.6 kg hai aur isme 190×90×20mm size ka strong Y35 Grade Ferrite Magnet Assembly use kiya gaya hai.
5.15PS76 speaker ki sensitivity kitni hai aur iska kya faida hai?
Iski sensitivity 98dB (1W/1m) hai, jisse kam amplifier power khainch kar bhi yeh speaker kaafi loud aur clear output deliver karta hai.
