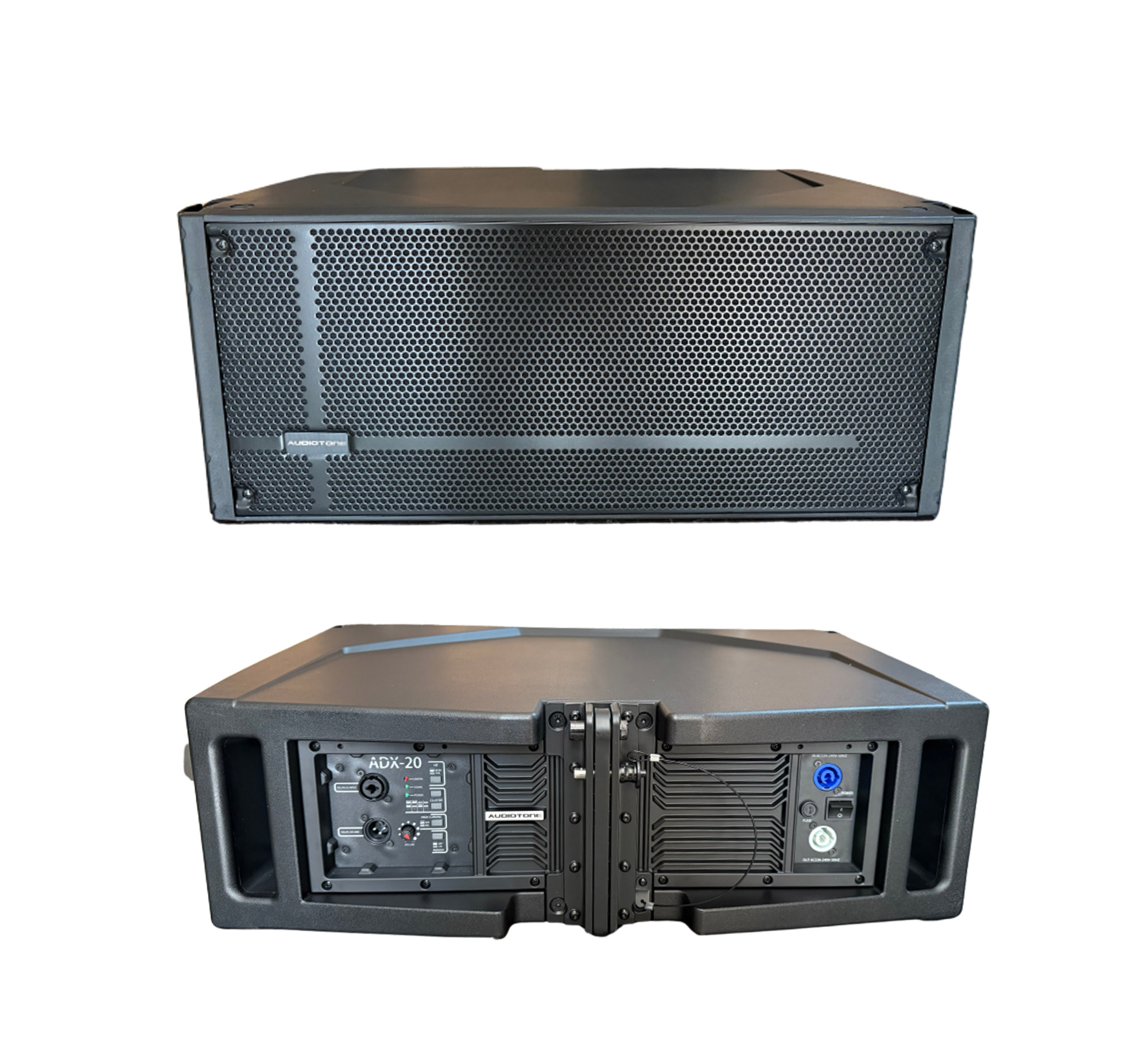

ADX-20 Bi-Amplified 2×10″ Loudspeaker
The ADX-20 is a powerful and compact bi-amplified loudspeaker system built to deliver premium sound reinforcement for a wide range of professional audio environments. From live concerts and rental systems to theaters, clubs, houses of worship, and corporate AV, the ADX-20 Bi-Amplified 2×10″ Loudspeaker
Powerful Audio Output with DSP Control
At the core of the ADX-20 is a bi-amplified Class D amplifier system that delivers 2000W peak (950W RMS) of total power. The LF amplifier outputs 1000W, while the HF amplifier delivers 200W, ensuring balanced, high-impact audio. Built-in digital signal processing (DSP) includes features like HF curve adjustment, indoor mode, and cluster control, allowing precise tuning for any venue or setup.
With a maximum SPL of 132dB, this loudspeaker offers room-filling volume with no compromise on clarity. A crossover point at 1800Hz ensures smooth transition between the dual 10″ woofers and the 2″ compression driver with a 3″ voice coil, delivering clear mids and sparkling highs.
Meet the ADX-20 by Audiotone: The Future of Sound
The ADX-20 features a 100° horizontal × 15° vertical constant directivity waveguide, making it ideal for both standalone use and clustered line array configurations. Its frequency response of 45Hz–18kHz (±3dB) ensures deep bass, detailed midrange, and articulate highs.
Constructed with a polypropylene composite cabinet, the ADX-20 is rugged yet lightweight, weighing just 29kg (64 lbs). The cabinet includes integrated rigging hardware and a pole mount, offering flexible mounting options for permanent installations or portable systems. The matte black finish blends seamlessly into any environment, while dual side handles provide easy transport and setup.
Connectivity & Protection
The system includes XLR input and output connections (Neutrik-style), allowing daisy-chaining between units. It also features soft clipping limiters and thermal/RMS protection circuits, providing safe and consistent performance even at high output levels. The switching power supply (1200W) ensures efficient and reliable operation for demanding professional use.
Frequently Asked Questions (FAQs)
1.Audiotone ADX-20 Line Array Module ki amplification architecture aur overall power handling ratings kya hain?
Yeh active line array speaker Bi-Amplified Class D amplifier structure par chalta hai (1000W LF + 200W HF Class D), jo 950W RMS continuous power aur 2000W Peak power output deliver karta hai.
2.Is active cabinet mein kis tarah ke LF aur HF transducers ka setup diya gaya hai?
Isme dual 10″ Woofers (2.5″ voice coils) low/mid frequencies ke liye aur 1 single 2″ Compression Driver (3.0″ voice coil) high-frequency throw ke liye install kiye gaye hain.
3.ADX-20 active speaker system ki frequency response, SPL level, aur dispersion pattern specs kya hain?
Iska frequency response range 45Hz se 18kHz (±3dB) tak hai, 132dB Peak Max SPL achieve karta hai, aur wide sound coverage ke liye 100° (H) × 15° (V) constant directivity waveguide pattern provide karta hai.
4.Is module ke internal DSP processing, limiters, aur audio crossover settings kya hain?
Isme 1800Hz bi-amp crossover point ke sath digital DSP processing di gayi hai jisme Cluster, HF Curve, aur Indoor Mode controls milte hain, jabki speaker protection ke liye Soft Clipping limiters aur Thermal/RMS protection circuiting included hai.
5.ADX-20 Active Line Array Module ka physical structure, cabinet material, aur mounting options kaisa hain?
Yeh sound-grade Polypropylene (PP) composite cabinet se bana matte black finish unit hai, jiska dimensions 294 × 705 × 445 mm aur net weight 29kg hai. Isme Neutrik-style XLR In/Out connectivity, integrated flying hardware, 35mm pole mount socket, aur side handles diye gaye hain.
