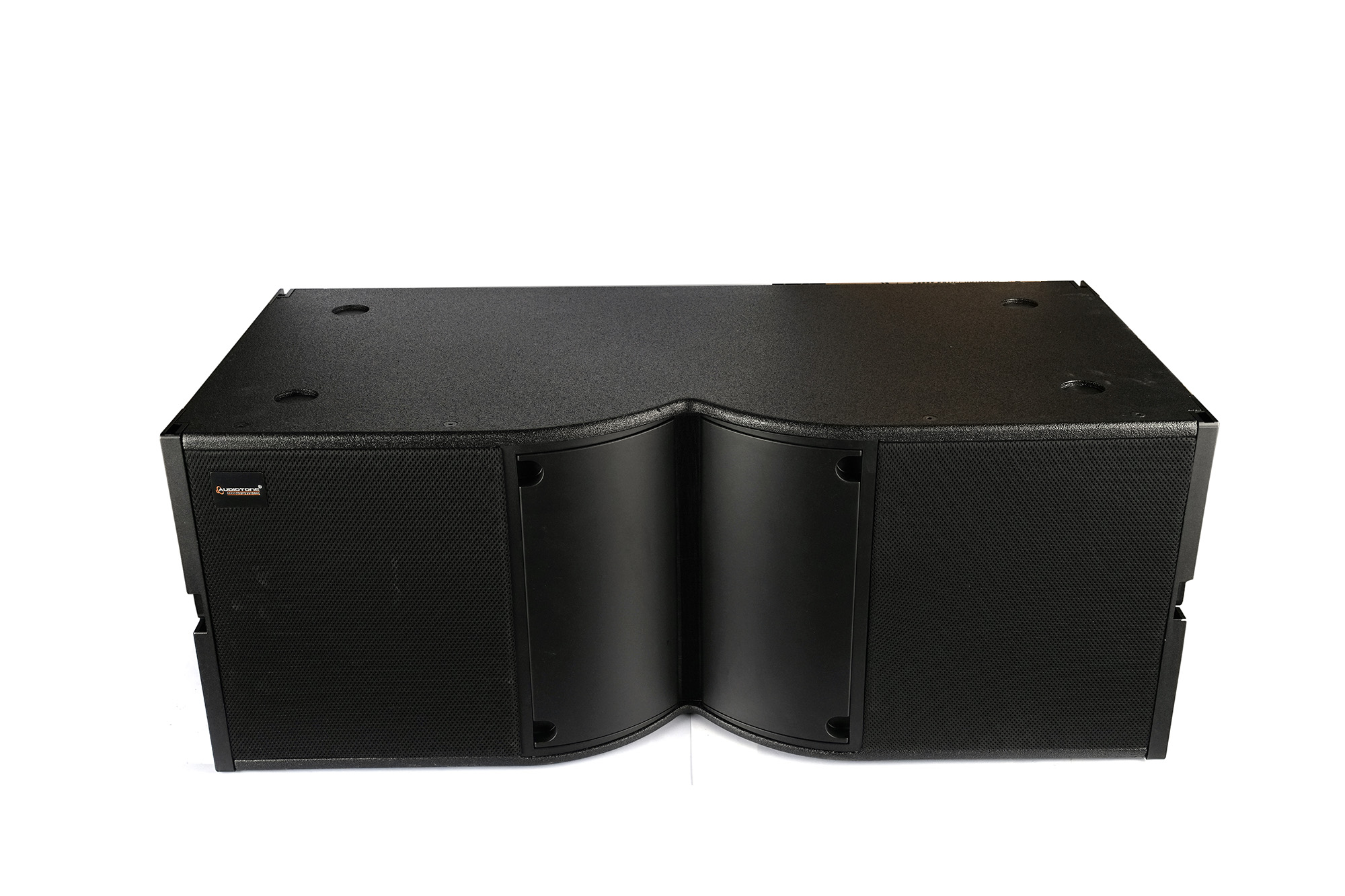

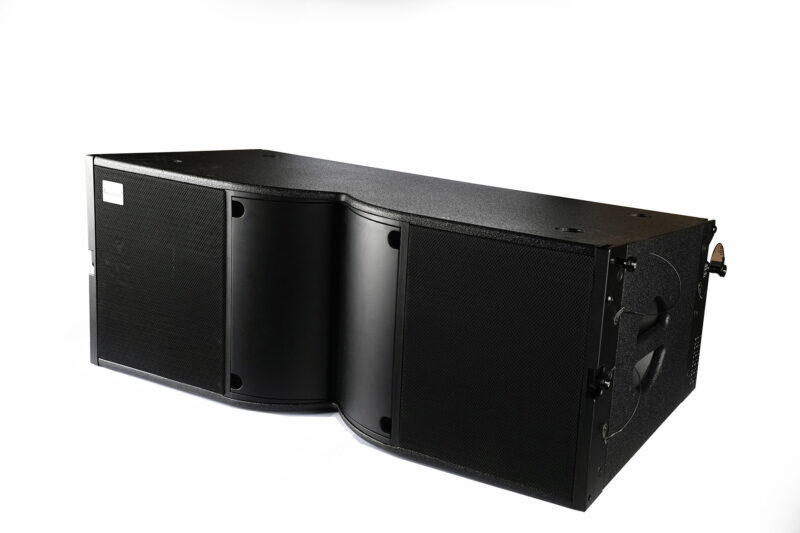

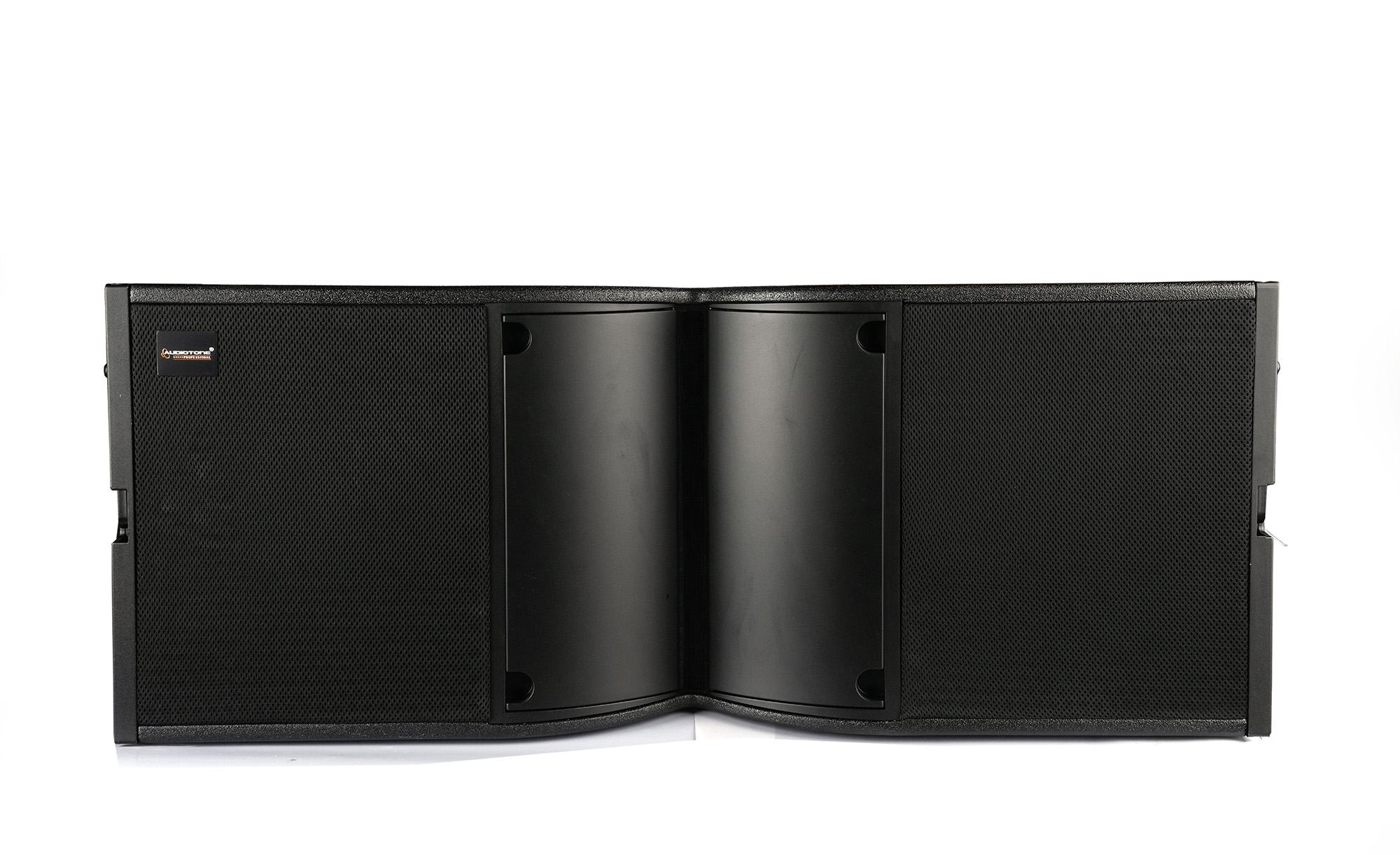

AD-12X3LA

Key Features:

✔ Dual 12″ Neodymium Woofers (75.8mm voice coils)
✔ 2×3″ Titanium HF Drivers
✔ 134dB Max SPL @ 1m
✔ 100° H ×10° V Coverage
✔ Polyurea-Coated Plywood Enclosure
✔ NLA4MPR Neutrik SpeakON Connectors

Frequency Response

45Hz-20kHz (±3dB)

Power Handling

1600W RMS / 3200W Program

Sensitivity

99dB (1W/1m)

Maximum SPL

134dB peak

Nominal Impedance

4Ω (Passive) / Bi-Amp: LF 4Ω + HF 8Ω

Transducers:



LF Drivers

2×12" Neodymium (700W each, 75.8mm VC)

HF Drivers

2×3" Titanium Diaphragm (100W each)

Physical Dimensions:



Dimensions (H×W×D)

900×360×450mm (35.4×14.2×17.7")

Net Weight

36.8kg (81 lbs)

Gross Weight

39.9kg (88 lbs)

Enclosure Material

Baltic Birch Plywood

Finish

Textured Polyurea Coating

Rigging

Integrated Flyware Points

Connections:



Input

Dual Neutrik NLA4MPR SpeakON

Output

Loop-Through SpeakON

    Have a question?




    Category:
    Loading...

    Description

    High-Power Dual 12″ Line Array Speaker

    Designed for large-scale events, concerts, auditoriums, and touring applications, this high-performance dual High-Power Dual 12″ Line Array Speaker delivers outstanding audio clarity, extreme output, and rugged durability. Built for professional sound reinforcement, it combines advanced driver technology with premium materials to meet the demands of modern audio setups.

    Unmatched Power and Performance

    At the heart of this system are dual 12″ neodymium LF woofers, each rated at 700W with 75.8mm voice coils. These powerful woofers deliver tight, responsive low-end performance that cuts through even the loudest environments. Complementing the lows are two 3″ titanium diaphragm high-frequency drivers, each with 100W power handling, delivering crisp and accurate highs without distortion.

    This speaker system has a power handling capacity of 1600W RMS and 3200W program. The system delivers a peak SPL of 134dB at 1 meter, ensuring powerful sound projection across large spaces. With a frequency response of 45Hz–20kHz (±3dB) and sensitivity of 99dB (1W/1m), it offers efficient and balanced audio performance.

    Optimized Sound Dispersion and Connectivity

    With a 100° horizontal × 10° vertical coverage pattern, this speaker is optimized for line array deployment, delivering controlled, even sound across large listening areas.

    Additionally, it supports both passive and bi-amp modes. The nominal impedance is 4Ω in passive mode and LF 4Ω + HF 8Ω in bi-amp configuration. As a result, you gain greater flexibility when designing your sound system. Meanwhile, the enclosure is constructed from Baltic birch plywood, offering both strength and acoustic integrity.. The rugged textured polyurea coating adds weather and scratch resistance, making it ideal for touring and outdoor use. With integrated flyware points, the cabinet is ready for suspended or arrayed installations.

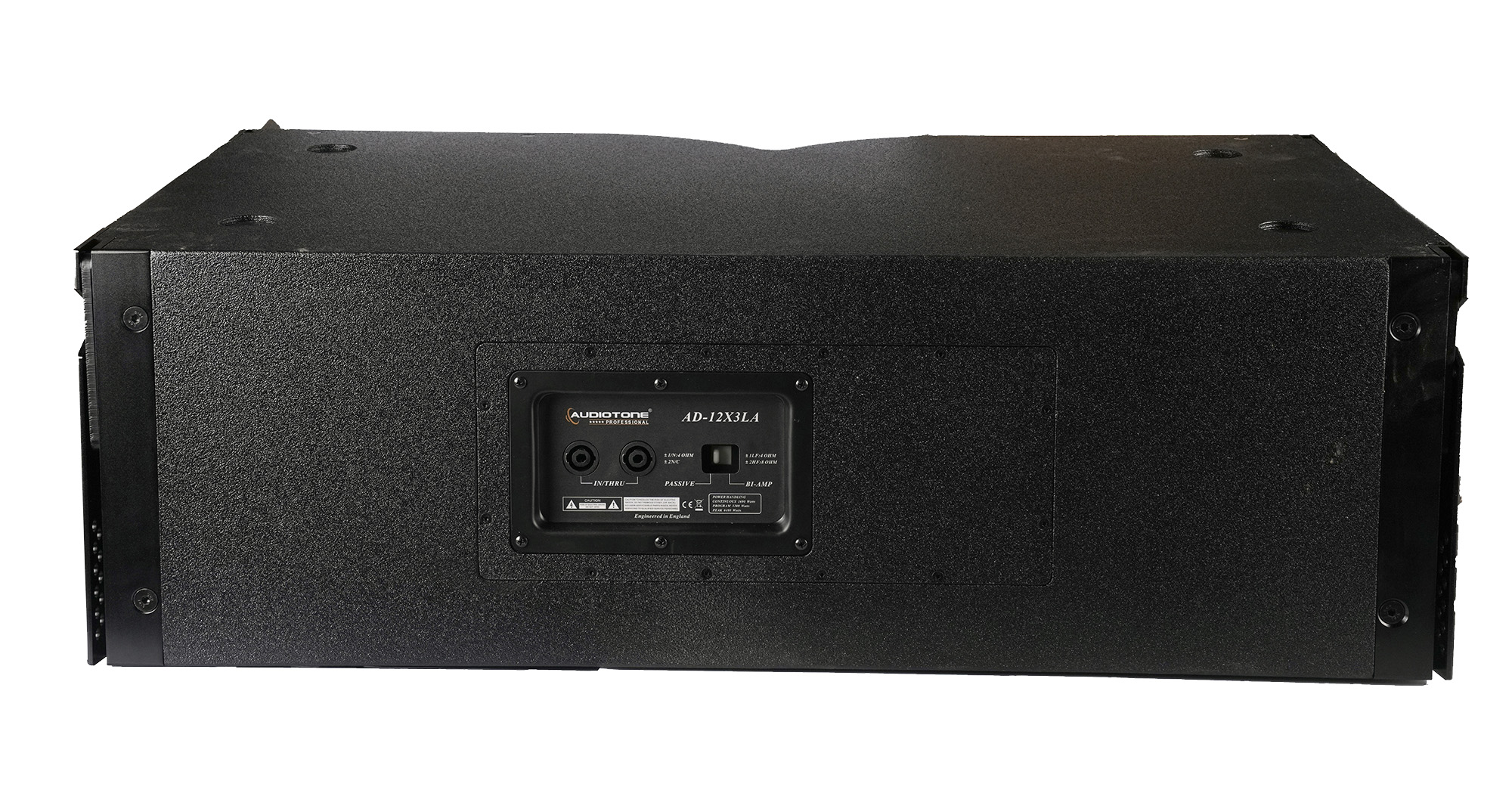

    Weighing 36.8kg (81 lbs), the speaker measures 900×360×450mm (35.4×14.2×17.7″), making it compact enough for transport yet powerful enough for professional use. It features dual Neutrik NLA4MPR SpeakON connectors for input and loop-through output for efficient daisy-chaining in array configurations.

    Frequently Asked Questions (FAQs)

    1.Audiotone AD-12X3LA Line Array Speaker Enclosure ki Power Handling capacity aur Output Impedance configuration kya hai?
    Yeh professional line array cabinet 1600W RMS (3200W Program) power handling support karta hai, aur iska nominal impedance passive mode mein 4Ω hai, jabki Bi-Amp mode mein LF 4Ω + HF 8Ω separate wiring support karta hai.

    2.Is Line Array Module mein kon-se Low Frequency (LF) aur High Frequency (HF) transducers install kiye gaye hain?
    Is me Dual 12″ Neodymium Woofers (700W each, 75.8mm voice coil) low-end frequencies ke liye milte hain, aur sharp high-end throw ke liye Dual 3″ Titanium Diaphragm HF Compression Drivers (100W each) lagaye gaye hain.

    3.AD-12X3LA speaker module ki frequency response range, SPL level, aur dispersion coverage kitni hai?
    Iska overall frequency response 45Hz se 20kHz (±3dB) tak hai, sensitivity 99dB (1W/1m) hai, peak Maximum SPL 134dB @ 1m deliver karta hai, aur coverage angle 100° Horizontal × 10° Vertical diya gaya hai.

    4.Is cabinet ke construction materials, rigging hardware, aur connection ports ke specifications kya hain?
    Iska enclosure heavy-duty Baltic Birch Plywood se bana hai Textured Polyurea Coating ke sath, iska dimensions 900×360×450mm aur net weight 36.8kg hai, array hanging ke liye integrated flyware points diye gaye hain, aur continuous looping ke liye Dual Neutrik NLA4MPR SpeakON connectors lagaye gaye hain.

    5.AD-12X3LA Dual 12-inch Line Array System ko large outdoor concerts aur stadium tourings ke liye kyon recommend kiya jata hai?
    Iska 1600W RMS massive power output, 134dB peak SPL, Neodymium lightweight magnet architecture, Bi-Amp/Passive flexibility, aur durable Baltic Birch/Polyurea finish isse long-throw outdoor live stages aur touring rigs ke liye extreme clarity aur punchy sound delivery deta hai.
