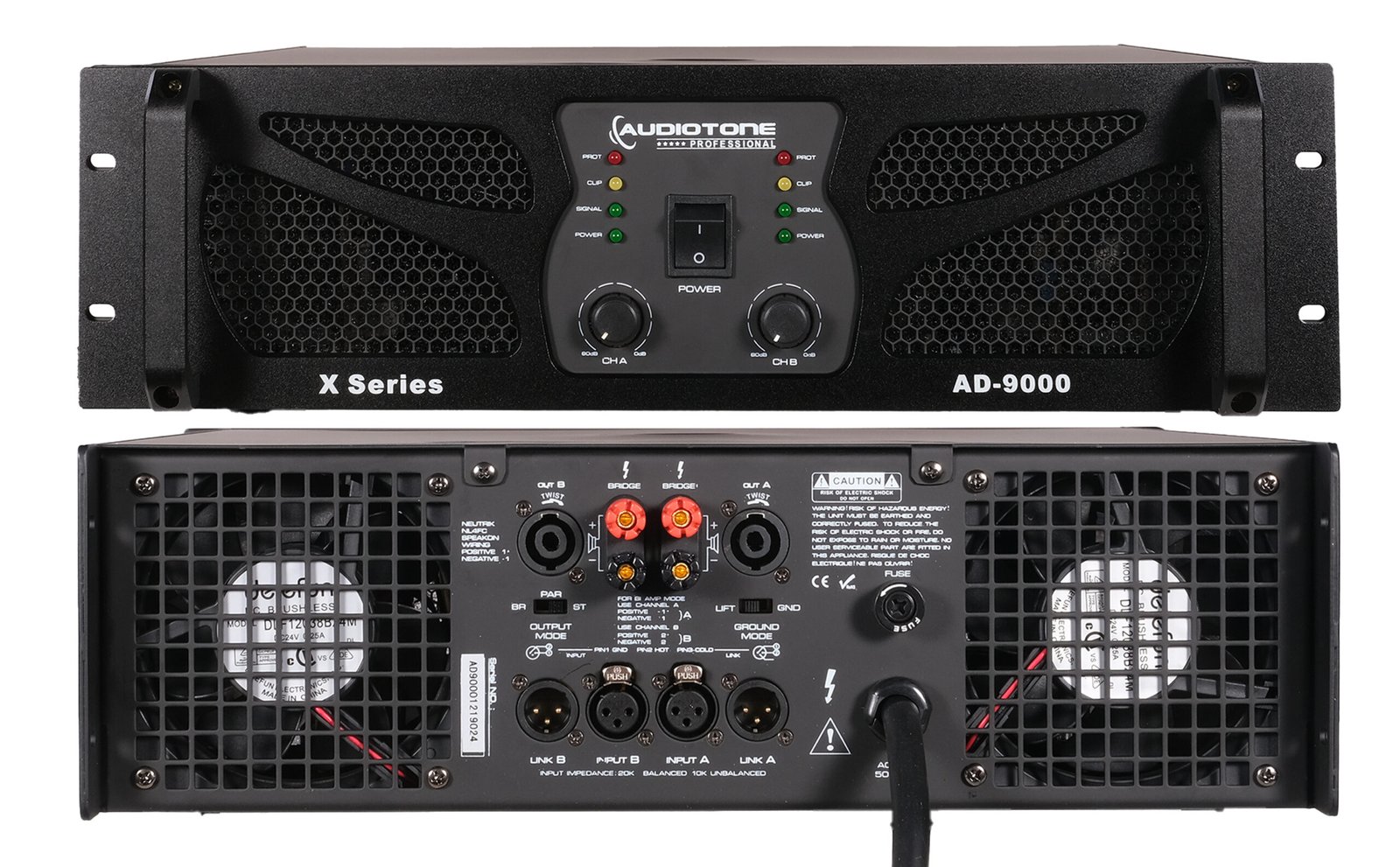

X-SERIES (AD-9000AD) Professional Power Amplifier

The X-SERIES (AD-9000AD) Professional Power Amplifier professional power amplifier engineered for top-tier audio applications where clarity, power, and reliability are essential. Designed with touring professionals, high-end venues, and demanding installations in mind, this 3U rack-mountable amplifier delivers massive output power across multiple impedance loads while maintaining pristine sound fidelity.

The AD-9000AD delivers until 2x2100W at 8Ω stereo and 2x3850W at 4Ω stereo. At 2Ω stereo after all it pushes a powerful 2x5200W, making it suitable for high-demand systems.

In bridged mode, it delivers 4800W at 8Ω and 7100W at 4Ω. This high output makes it ideal for large-format line arrays, subwoofers, and full-range setups in stadiums, clubs, and concert halls.

This amplifier features Class D/HD output circuitry, combining high-efficiency operation with low heat generation and reduced power consumption. The AD-9000AD offers flexible input sensitivity options—0.75V, 1.0V, and 1.4V—to accommodate a variety of input sources. Its input impedance of 20KΩ, signal-to-noise ratio of 109dB, and crosstalk rejection of ≤62dB @ 1kHz (8Ω) deliver unmatched sonic purity and channel separation. A damping factor ≥3000 allows for precise speaker control, improving transient response and bass definition.

Built for rugged professional use, the AD-9000AD amplifier features a durable 3U rack-space chassis.

unlike Weighing 39 kg, it ensures long-term reliability without sacrificing performance. Ideal for fixed installations and touring setups, it handles continuous high-load conditions with ease.

The amplifier delivers stable, efficient output under demanding circumstances.

The X-SERIES AD-9000AD is not just about raw power—it’s about controlled, high-fidelity power. From the tight punch of kick drums to the clarity of lead vocals, it reproduces every element of your audio mix with stunning detail. For engineers and installers seeking an amplifier that delivers professional-grade performance across every specification, the AD-9000AD is the ultimate solution.

Frequently Asked Questions (FAQs)

1. What is the Audiotone X-SERIES AD-9000AD Amplifier used for?

The Audiotone X-SERIES AD-9000AD is a professional power amplifier designed for concerts, touring sound systems, line arrays, DJ events, auditoriums, houses of worship, clubs, and large-scale sound reinforcement applications.

2. How much power does the AD-9000AD deliver?

The AD-9000AD delivers 2×2100W at 8Ω stereo, 2×3850W at 4Ω stereo, and 2×5200W at 2Ω stereo. In bridge mode, it provides up to 7100W at 4Ω, making it ideal for demanding professional audio environments.

3. What amplifier technology does the AD-9000AD use?

The amplifier features advanced Class D/HD output circuitry, which offers high efficiency, reduced power consumption, lower heat generation, and reliable high-output performance.

4. Is the AD-9000AD suitable for line array speaker systems?

Yes. The AD-9000AD is engineered to power professional line array systems, full-range loudspeakers, stage monitors, and subwoofers with exceptional clarity and control.

5. What is the benefit of the damping factor of ≥3000?

A damping factor greater than 3000 ensures outstanding speaker control, resulting in tighter bass response, improved transient performance, and enhanced overall sound accuracy.

6. Can the AD-9000AD drive subwoofers in bridge mode?

Absolutely. With up to 7100W at 4Ω bridge mode, the amplifier provides ample power for professional subwoofers and bass reinforcement systems.

7. What audio quality features does the AD-9000AD offer?

The amplifier delivers a wide frequency response of 20Hz–20kHz, a signal-to-noise ratio of 109dB, low THD of 0.05%, and excellent channel separation for clean, distortion-free audio reproduction.

8. What input sensitivity options are available on the AD-9000AD?

The AD-9000AD offers selectable input sensitivity settings of 0.75V, 1.0V, and 1.4V, ensuring compatibility with professional mixers, DSP processors, audio controllers, and sound management systems.

9. Is the AD-9000AD suitable for touring and fixed installations?

Yes. Its rugged 3U rack-mount chassis, high power output, and reliable performance make it ideal for both touring sound systems and permanent commercial audio installations.

10. Why choose the Audiotone X-SERIES AD-9000AD Professional Amplifier?

The Audiotone AD-9000AD combines powerful output, advanced Class D/HD technology, superior damping factor, low distortion, and professional-grade reliability, making it an excellent choice for concerts, line arrays, live sound reinforcement, and commercial audio applications.
