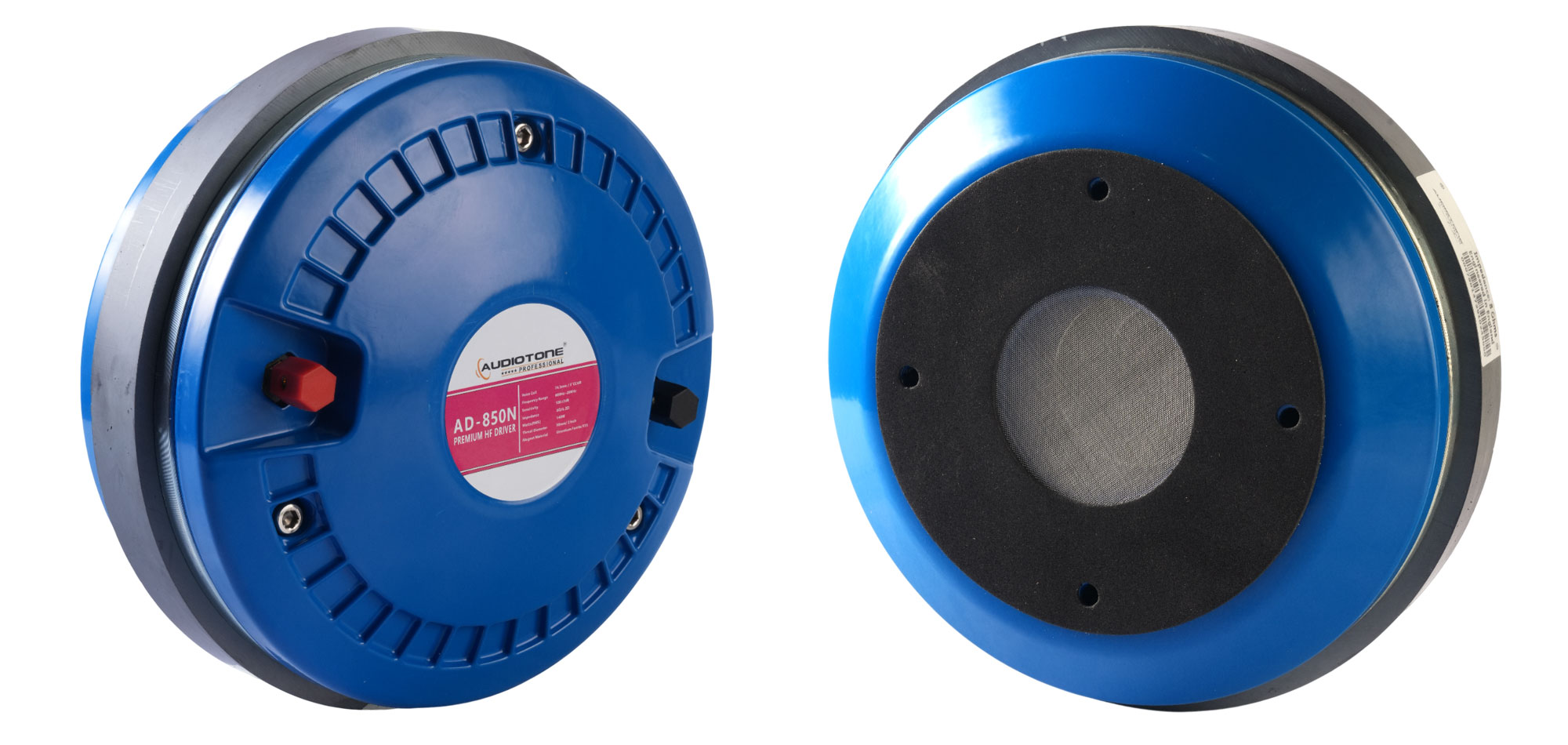

AD-850N
High-Power Horn Driver for PA Systems.
Key Features:
✔ 3″ (74.5mm) Copper-Clad Aluminum Voice Coil
✔ 108dB Sensitivity for High Efficiency
✔ Dual Impedance: 8Ω or 6.2Ω Configuration
✔ Strontium Ferrite V35 Magnet for High Flux Density
✔ 140W RMS Power Handling
Recommended Applications:
✔ Horn-Loaded PA Systems
✔ Live Sound High-Frequency Arrays
✔ Fixed Installations (Stadiums, HoW)
✔ Stage Monitor Tweeters
Compatibility:
✔ Horns: Compatible with 2″ throat wave guides (e.g., 60°×40° or 90°×50°)
✔ Crossovers: Recommended >800Hz (24dB/Octave)
| Voice Coil | 3" (74.5mm) CCAR (Copper-Clad Aluminum) |
|---|---|
| Frequency Range | 800Hz–20kHz (±3dB) |
| Sensitivity | 108dB ±2dB (1W/1m) |
| Impedance | 8Ω (Standard) / 6.2Ω (Optional) |
| Power Handling | 140W RMS (280W Program) |
| Throat Diameter | 2" (50mm) |
| Mechanical Design: |
|
| Magnet Type | Strontium Ferrite V35 (High-Grade) |
| Flux Density | ≥1.2 Tesla (Estimated) |
| Diaphragm Material | Titanium-Coated Polymer |
| Mounting | Standard 2-Bolt Pattern |
