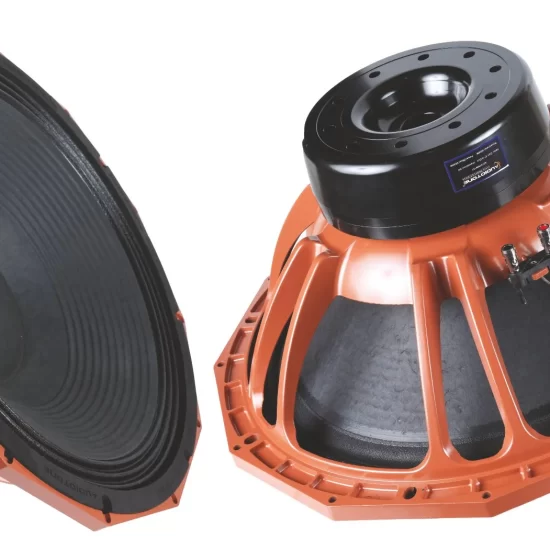

AD-21SW152 – 21″ Neodymium Subwoofer Driver with 6400W

Engineered for professionals who demand exceptional low-frequency performance, the AD-21SW152 – 21″ Neodymium Subwoofer Driver with 6400W 21-inch subwoofer designed to deliver earth-shaking bass with clarity, control, and efficiency. With a continuous maximum power rating of 6400W and RMS power handling of 3200W, this driver is built for extreme SPL applications in large-scale sound reinforcement systems, concert setups, and premium touring rigs.

At the core of the AD-21SW152 is a 152mm (6-inch) In/Out voice coil, built to withstand intense thermal loads. It ensures clear, distortion-free sound even during long, high-output sessions.

The large voice coil pairs with a neodymium N45 magnet (150×50×15 mm) to deliver a strong magnetic flux. This combination enhances driver efficiency and performance. Despite its power, the unit remains lightweight—making it a portable solution for mobile PA systems.

It also aids in efficient heat dissipation, which helps protect internal components during continuous, high-output sessions. Despite its powerful performance, the AD-21SW152 weighs only 15.2 kg, making it a lightweight and reliable choice for demanding live shows and fixed installations alike.

With a sensitivity rating of 98 ± 2dB, the driver ensures high output levels with minimal amplifier strain. Its 8-ohm nominal impedance and 5.3-ohm DC resistance offer broad compatibility with industry-standard amplifiers and crossover networks, giving sound engineers the flexibility they need in complex configurations.

The AD-21SW152 features a robust aluminium basket that enhances structural integrity and supports long-term durability. It also helps dissipate heat efficiently, which protects internal components during high-output operation.

FAQ Section

1. What level of low-end bass performance does the Audiotone AD-21SW152 Neodymium subwoofer deliver?

The Audiotone AD-21SW152 is a high-performance 21-inch Neodymium subwoofer driver engineered for extreme low-end output and heavy sub-bass impact. With a continuous power rating of 3200W RMS (6400W Peak) and a low frequency reach down to 35Hz, it produces ground-shaking bass pressure designed to cover massive outdoor crowds, festival stages, and large wedding DJ setups.

2. What are the key benefits of the Neodymium magnet structure in the AD-21SW152?

Featuring a high-grade N45 Neodymium magnet, this 21-inch subwoofer delivers immense power handling while weighing only 15.2 kg. This lightweight design provides ultra-fast cone transient response for punchier bass, while making loading, transporting, and mounting heavy 21-inch speaker cabinets significantly easier for touring crews and rental teams.

3. How does the AD-21SW152 manage heat during continuous, high-volume shows?

Equipped with a massive 6-inch (152mm) in/out heat-resistant voice coil and a ventilated die-cast aluminum frame, this driver offers superior thermal management. Its efficient cooling architecture rapidly dissipates heat buildup during non-stop operation, preventing power compression and keeping your bass tight and distortion-free throughout all-night DJ sets.

4. Can I use this 21-inch driver as a full-range speaker for vocals and music details?

No, this driver is designed specifically for low-frequency sub-bass output. To build a balanced, full-range audio system, pair it with 12-inch or 15-inch top speakers to handle crisp vocals and instruments while the AD-21SW152 handles the heavy, low-end sub-bass vibrations.

5. What power amplifier rating is recommended to safely drive the AD-21SW152?

To achieve maximum bass output without signal clipping, match this 8-ohm driver with a high-capacity power amplifier capable of supplying 3200W to 4800W RMS per channel. Supplying clean, unclipped power maintains tight cone control and protects the oversized 6-inch voice coil from clipping damage.
