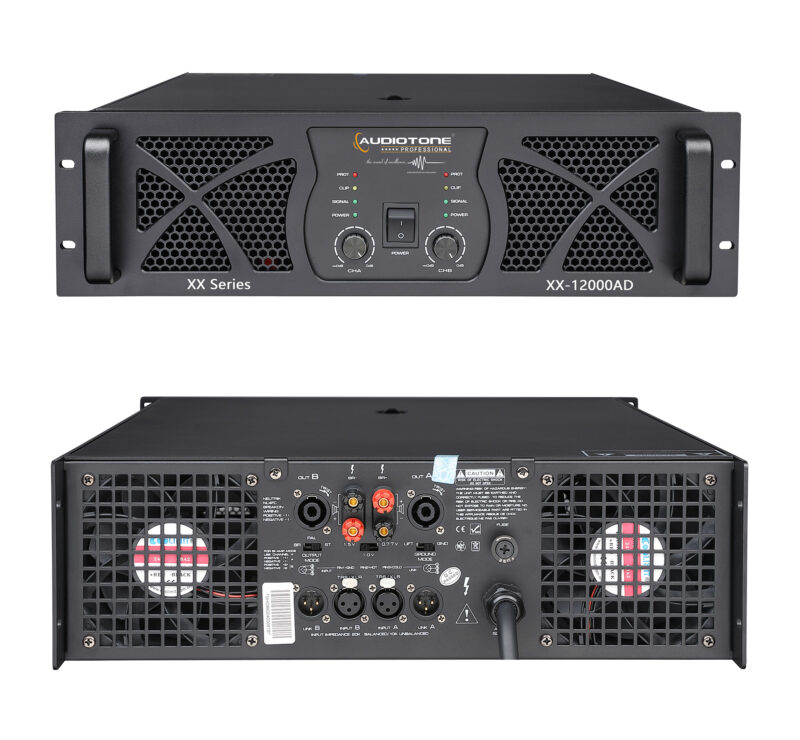

XX-SERIES (12000-AD)
High-Powered Professional Audio Power Amplifier
Key Features:
✔ Class D/HD Technology: Efficient and high-performance output.
✔ Wide Frequency Response: 20Hz–300Hz (±0.3dB) for deep bass clarity.
✔ Robust Protections: Built-in safeguards for overload and heat.
✔ High Damping Factor (≥3500): Tight control for subwoofers.
| 8Ω Stereo | 2 × 2800W |
|---|---|
| 4Ω Stereo | 2 × 5600W |
| 2Ω Stereo | 2 × 6200W* |
| 8Ω Bridge Power | 6200W |
| 4Ω Bridge Power | 8900W* |
| Output Circuitry | Class D/HD |
| Frequency Response | 20Hz–300Hz (±0.3dB) |
| Input Sensitivity | 0.775V / 1.0V / 1.5V |
| Input Impedance | 20kΩ |
| S/N Ratio | ≥100dB |
| Damping Factor | ≥3500 |
| THD | 0.05% @ 8Ω |
| Rack Space | 3U |
| Gross Weight | 45 kg |
