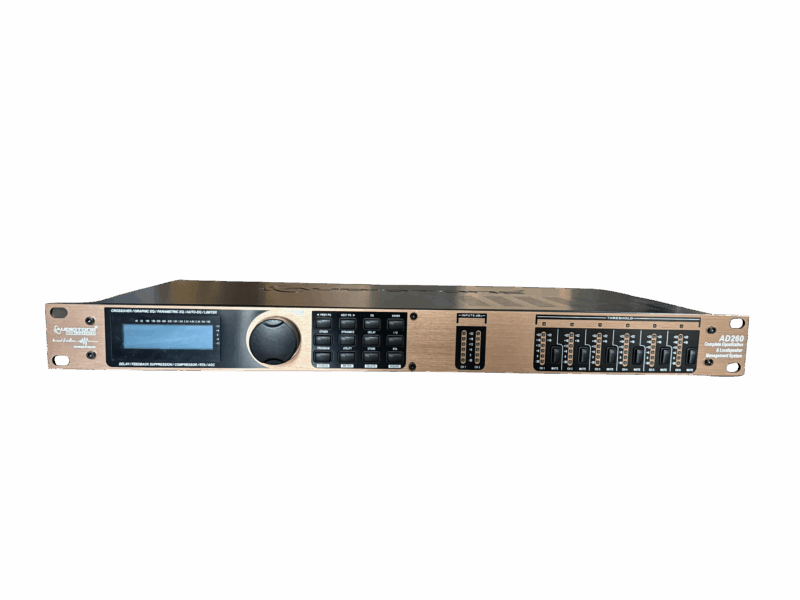

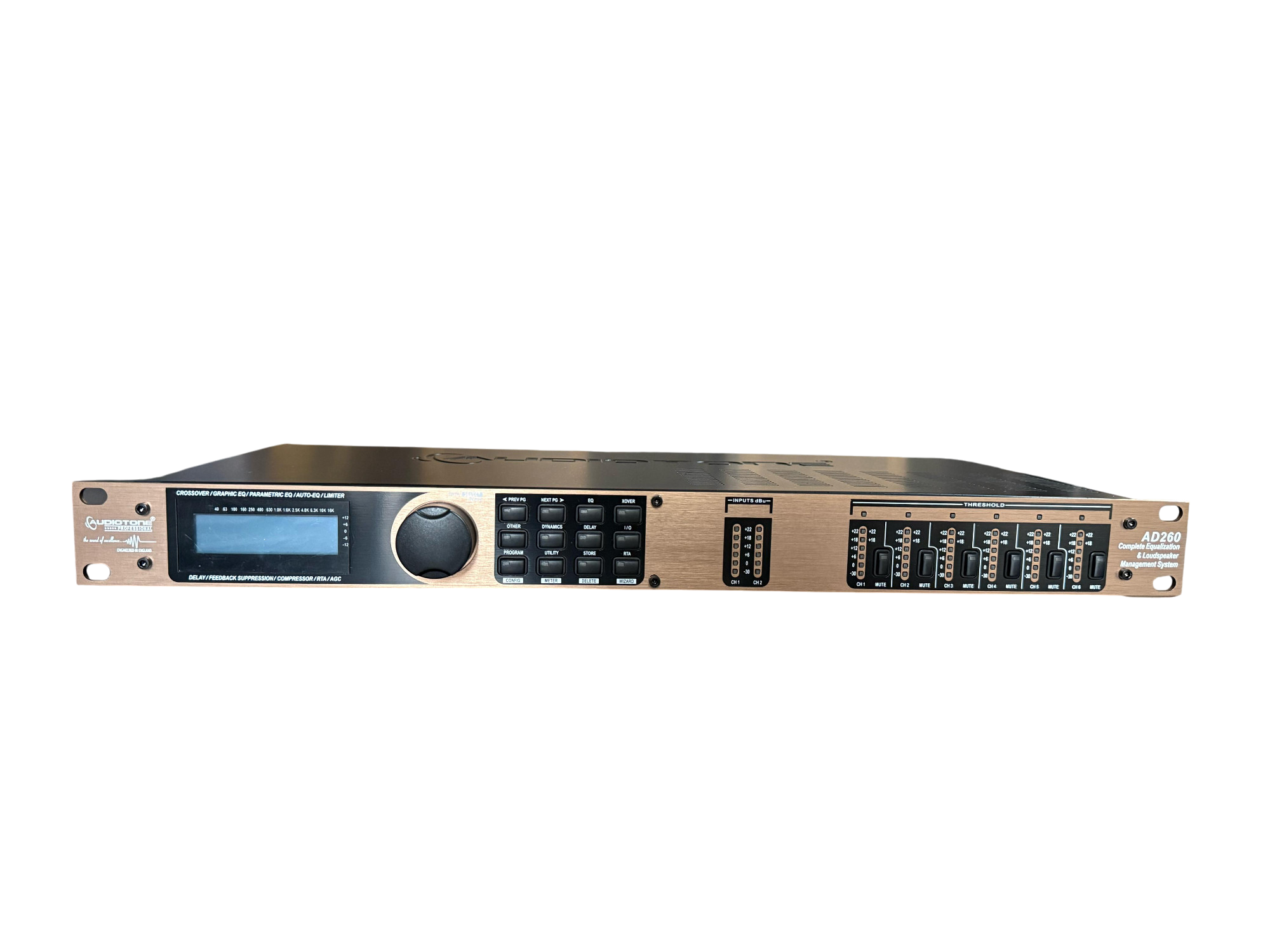

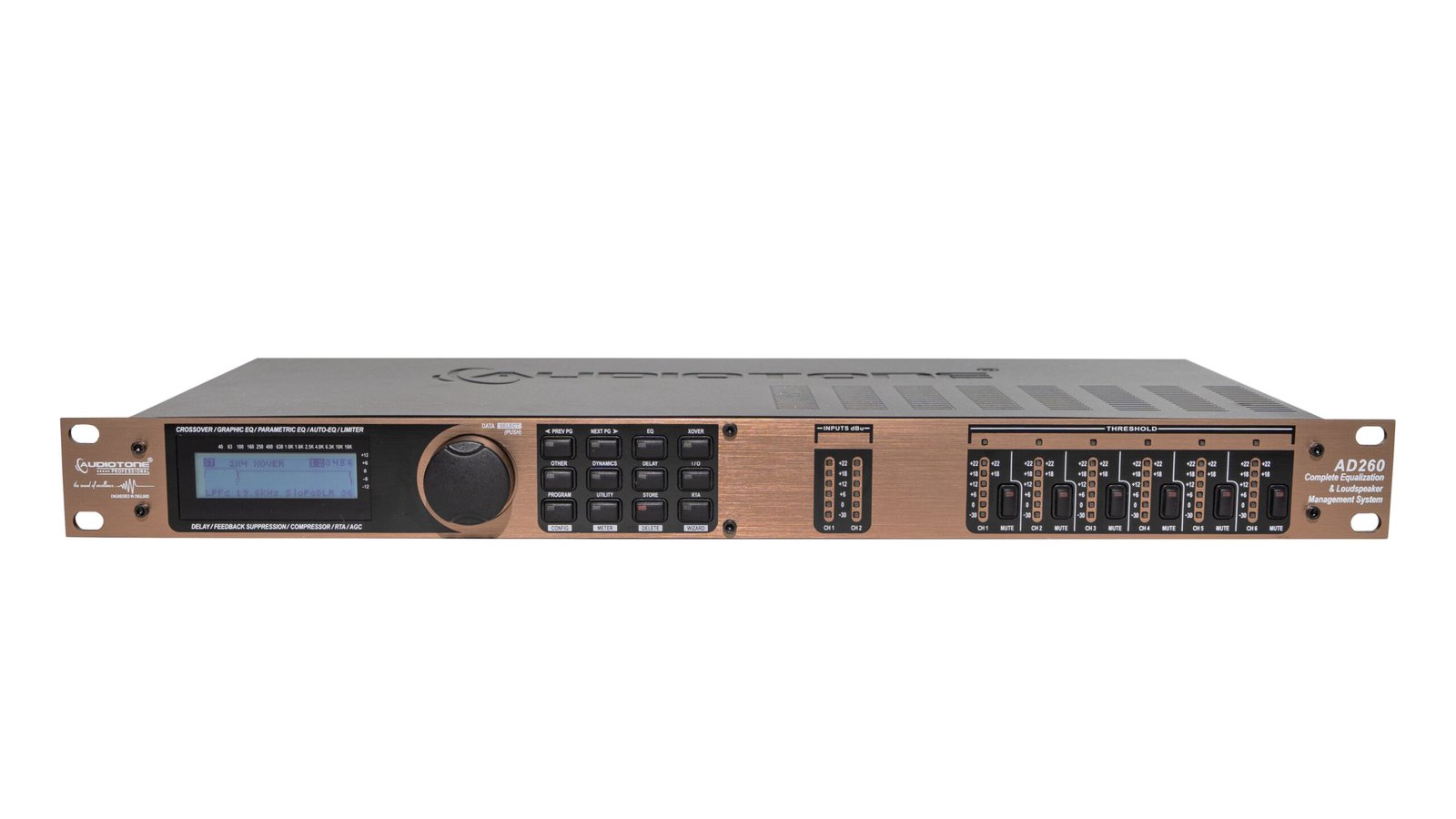

Professional Audio Signal Processor

Designed for precision audio control and professional sound reinforcement, this Professional Audio Signal Processor is the ultimate choice for audio engineers, sound technicians, and live performance venues. Built with advanced electronics and studio-grade components, it delivers clean, accurate sound across a wide frequency spectrum with minimal distortion.

Versatile Input Options for Flexible Integration

The system features two electronically balanced and RF-filtered line inputs, along with one dedicated RTA mic input, all using male XLR connectors. The input impedance exceeds 40k ohms, allowing seamless connectivity with various audio sources. It supports a maximum input level of +30dBu when jumpers are set to the +30 position, providing headroom for even the most demanding signals.

Powerful Outputs with Clarity and Control

Equipped with six electronically balanced, RF-filtered male XLR outputs, this processor allows flexible routing and connectivity. Each output has an impedance of 120 ohms and supports a maximum output level of +22dBu, delivering clean, high-powered audio to your amplifiers or mixing systems.

Superior Audio Quality and Performance

The unit boasts a dynamic range of over 110dB (A-weighted) and 107dB unweighted. This ensures rich detail and clarity across the full frequency spectrum. Its THD+Noise is as low as 0.003% (measured at +4dBu, 1kHz, 0dB gain). Even at high output levels, it maintains ultra-clean, professional-grade sound.

. The frequency response of 20Hz to 20kHz (+/- 0.5dB) ensures full-range audio that’s both accurate and natural.

Interchannel crosstalk is rated at over 110dB, with 120dB typical. The input-to-output crosstalk exceeds 100dB. These figures help minimize signal bleed and preserve the integrity of each channel.

Reliable Power and Build Quality

This processor operates on 230V AC at 50/60Hz, suitable for international professional audio setups. Built for portability and protection, it comes with packing dimensions of 90mm x 560mm x 290mm. The net weight is 2.5kg, and gross weight is 3.18kg, making it compact and easy to transport or rack-mount in mobile setups.

Frequently Asked Questions (FAQs)

Q1. Audiotone Drive Rack AD-260 ka primary role sound system me kya hai?

A: Drive Rack AD-260 ek 2-in/6-out digital loudspeaker processor hai jo main mixers aur power amplifiers ke beech active crossovers, speaker EQ, delay alignment, aur output limiting control karta hai.

Q2. Isme RTA Mic Input port ka kya purpose hai?

A: Dedicated XLR RTA (Real-Time Analyzer) mic input venue ki room acoustics ko precisely measure karke automated/manual room equalization aur sound tuning support karta hai.

Q3. AD-260 active processor ke audio resolution aur noise floor levels kaise hain?

A: Processor 48kHz sample rate, >110 dB A-weighted dynamic range, aur ultra-low 0.003% THD+Noise deliver karta hai jo zero audio degradation ensure karta hai.

Q4. Maximum Input level aur Crosstalk ratings ka kya benefit hai?

A: +30dBu max input handling high-output digital mixers se clipping-free audio receive karti hai, jabki >110dB crosstalk channels ke beech maximum signal isolation maintain karta hai.

Q5. AD-260 ki operating voltage aur physical weight details kya hain?

A: Unit standard 230 VAC 50/60Hz mains supply par operate karti hai aur light-weight touring rack setup ke liye iska net weight 2.5 kg (gross weight 3.18 kg) hai.
