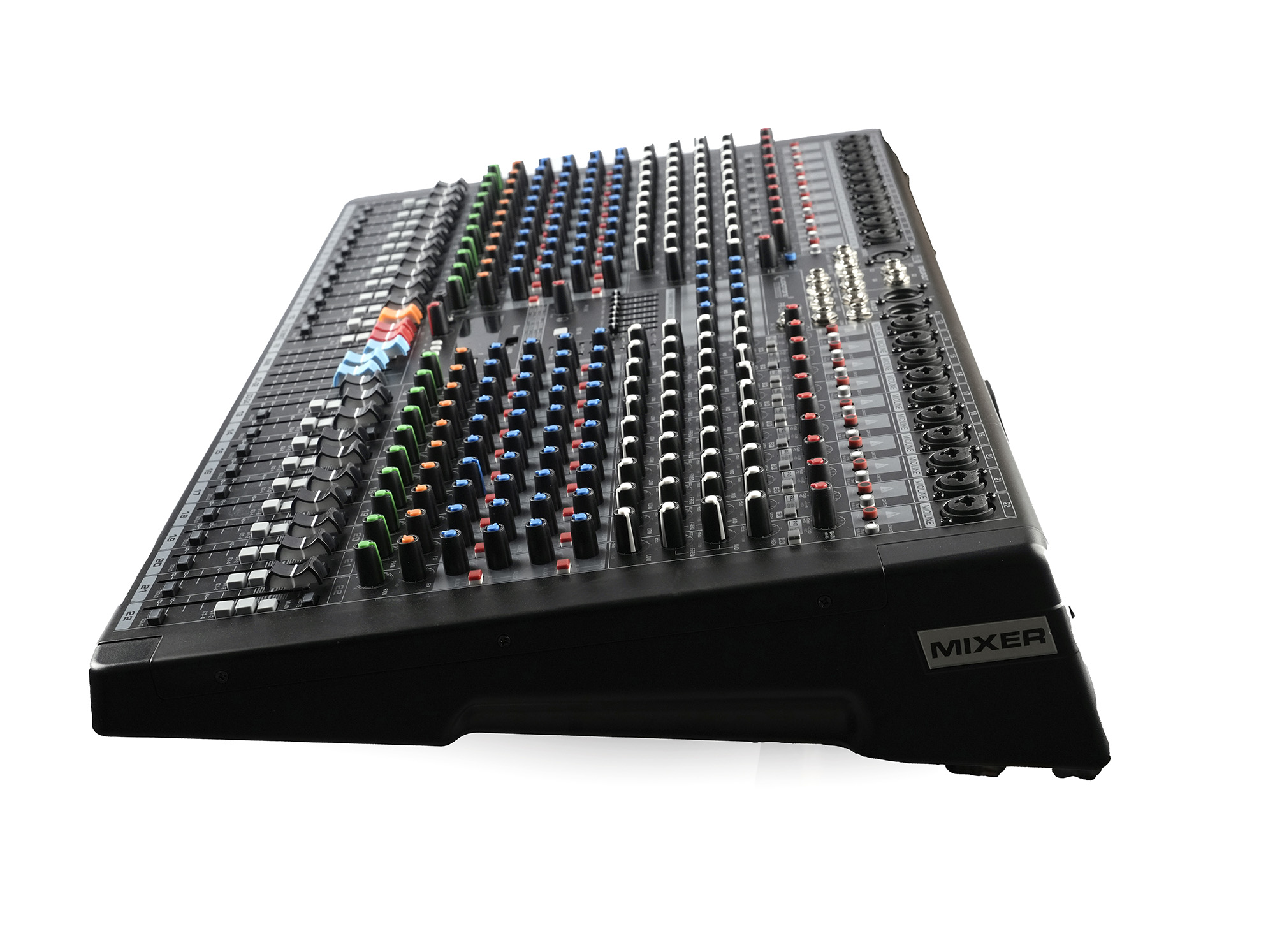

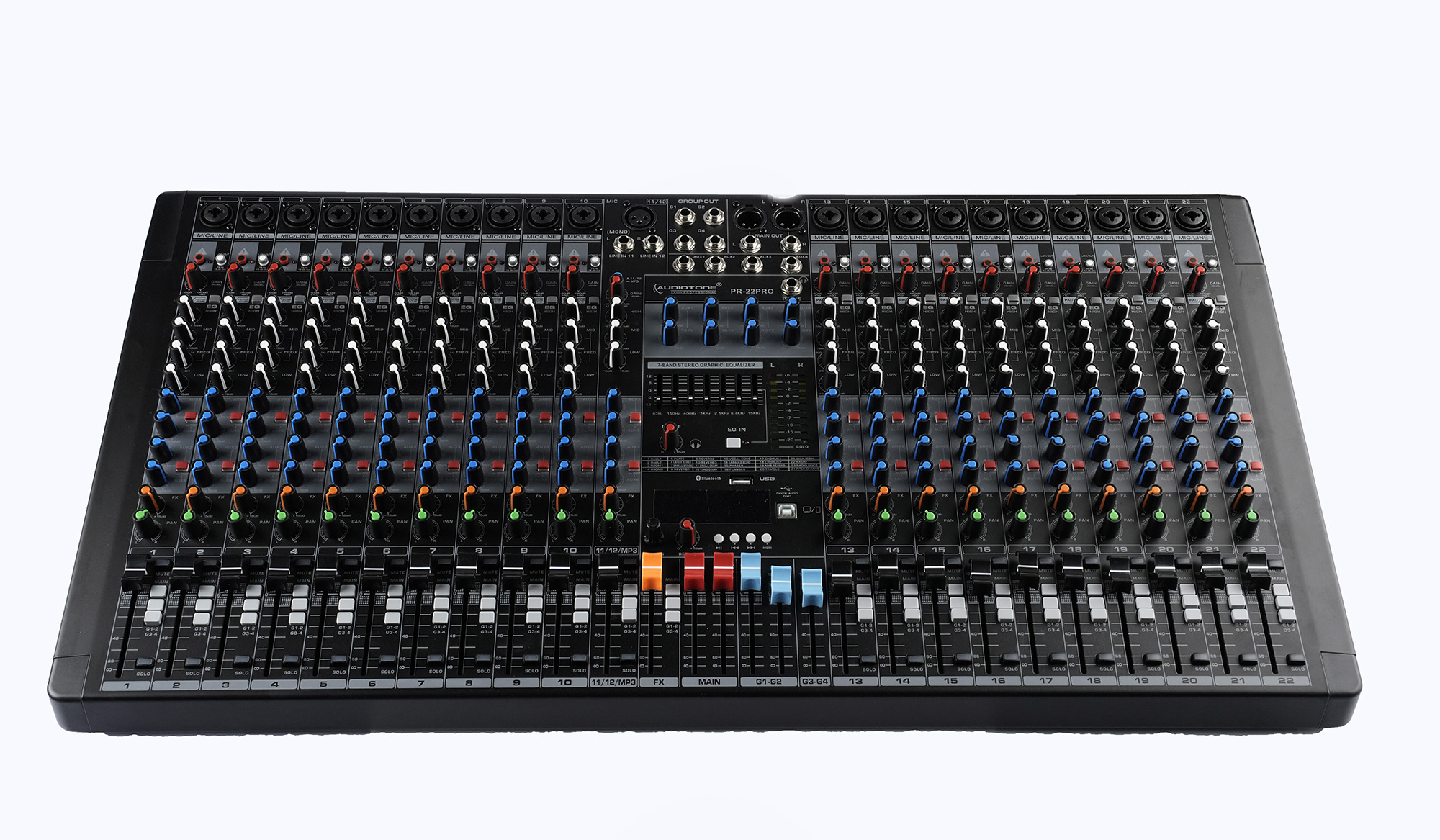

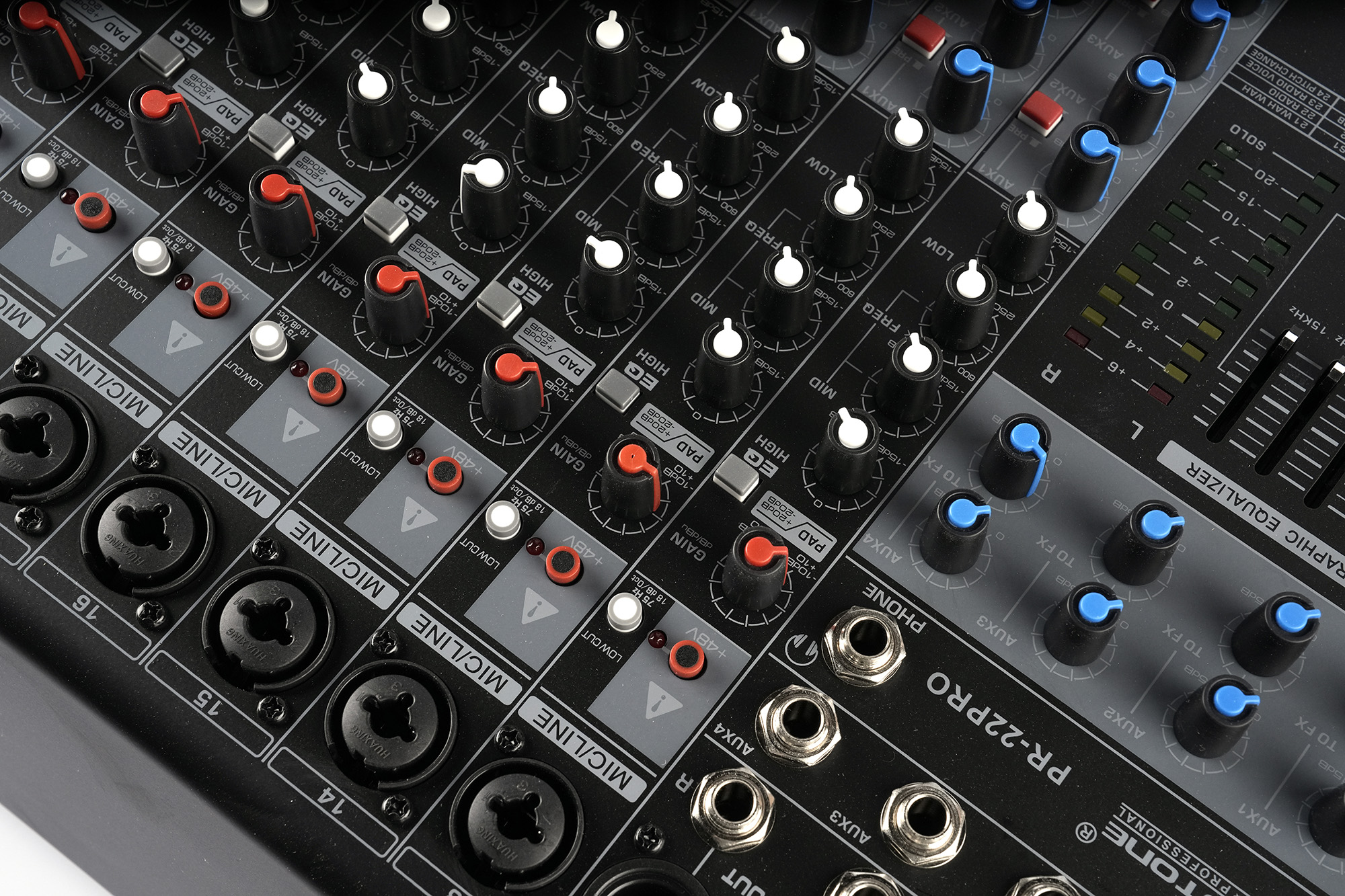

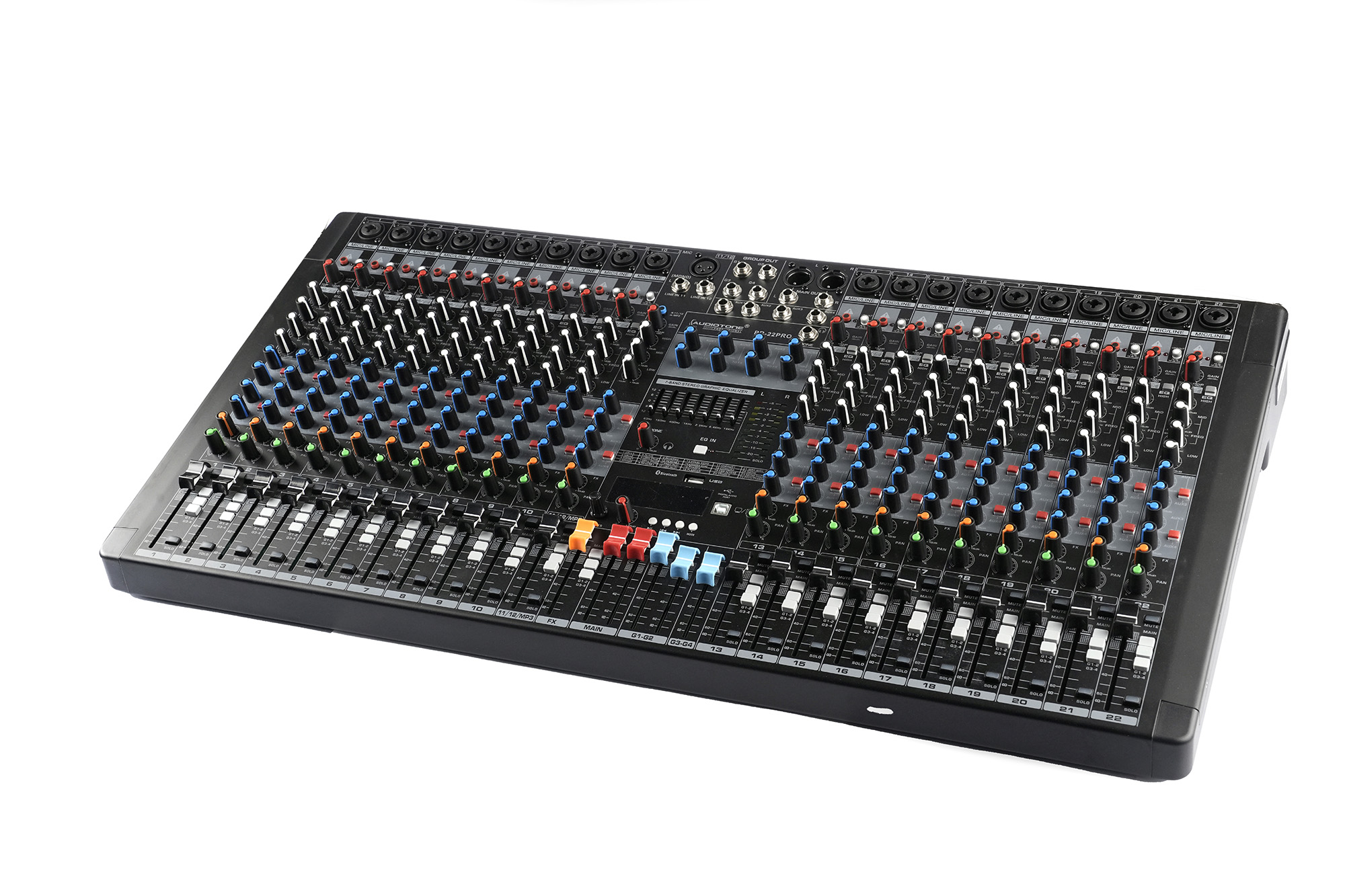

Audiotone PR-22PRO
22-Channel Professional Mixing Console
Key Features:
✔ 20 Mono XLR + 2 Stereo Inputs
✔ 32-Bit DSP with 24 Effects
✔ Bluetooth 5.0 & USB OTG Recording
✔ 7-Band Main EQ + Bypass
✔ 4 AUX Sends (Pre/Post Selectable)
Features
✔ Phantom Power: Per-channel +48V
✔ Mute/Solo: All channels
✔ Connectors: XLR/TRS Combo Jacks
✔ Finish: Anti-Scratch Metal Chassis
Recommended For
✔ PR-22PRO: Mid-size events, worship spaces, live bands
| Mono Channels | 20 (XLR, +48V) |
|---|---|
| Stereo Channels | 2 (TRS) |
| Channel EQ | 3-Band (Hi/Mid/Low) |
| Mid Frequency | Sweepable |
| Pad/Low Cut | -20dB / 75Hz |
| Processing: |
|
| Effects | 24 DSP Presets |
| Main EQ | 7-Band Graphic |
| AUX Outputs | 4 (XLR/TRS) |
| Group Outputs | 4 (XLR) |
| Physical Specs: |
|
| Dimensions | 532×132×420mm (2U) |
| Weight | 10kg |
| Power | 100-240V AC |
