AD-2188PYD

Overall Diameter

572 × 552 mm

Bolt Circle Diameter

520 mm

Baffle Cutout Diameter

498 mm

Depth

250 mm

Flange & Gasket

18 mm

Net Weight

39.5 kg

Nominal Diameter

21 inch

Nominal Impedance

8 Ω

DC Resistance

5 Ω

Nominal Power Handling

4000 W

Continuous Power Handling

8000 W

Sensitivity

98.3 ± 2 dB

Voice Coil Diameter

6"in/out +4Layers

T Yoke

22 mm

Plate

15 mm

Magnet

330 × 170 × 25 × 2 mm

Basket

Cast Aluminium

    Have a question?




    Category:
    Loading...

    Description

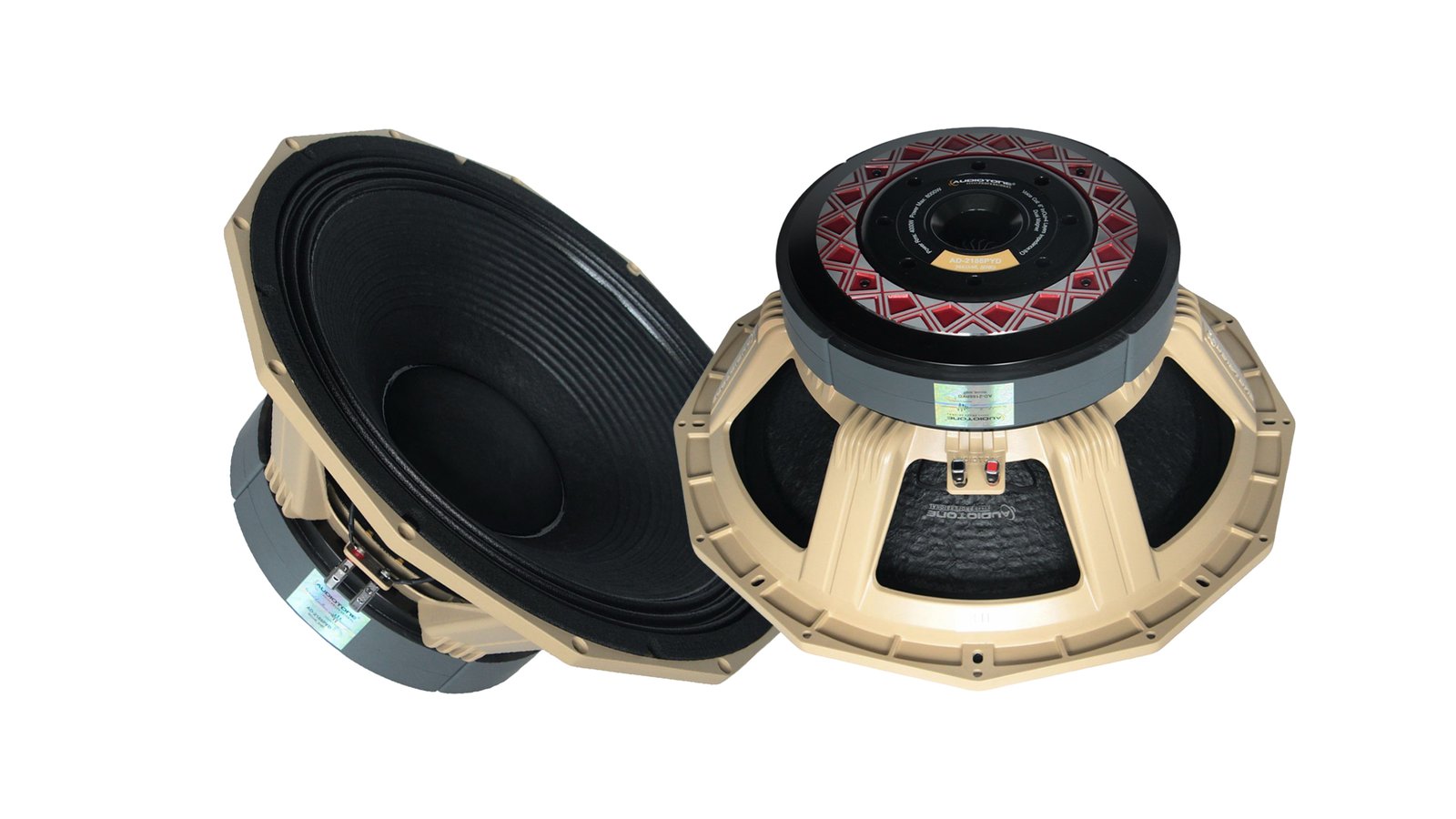

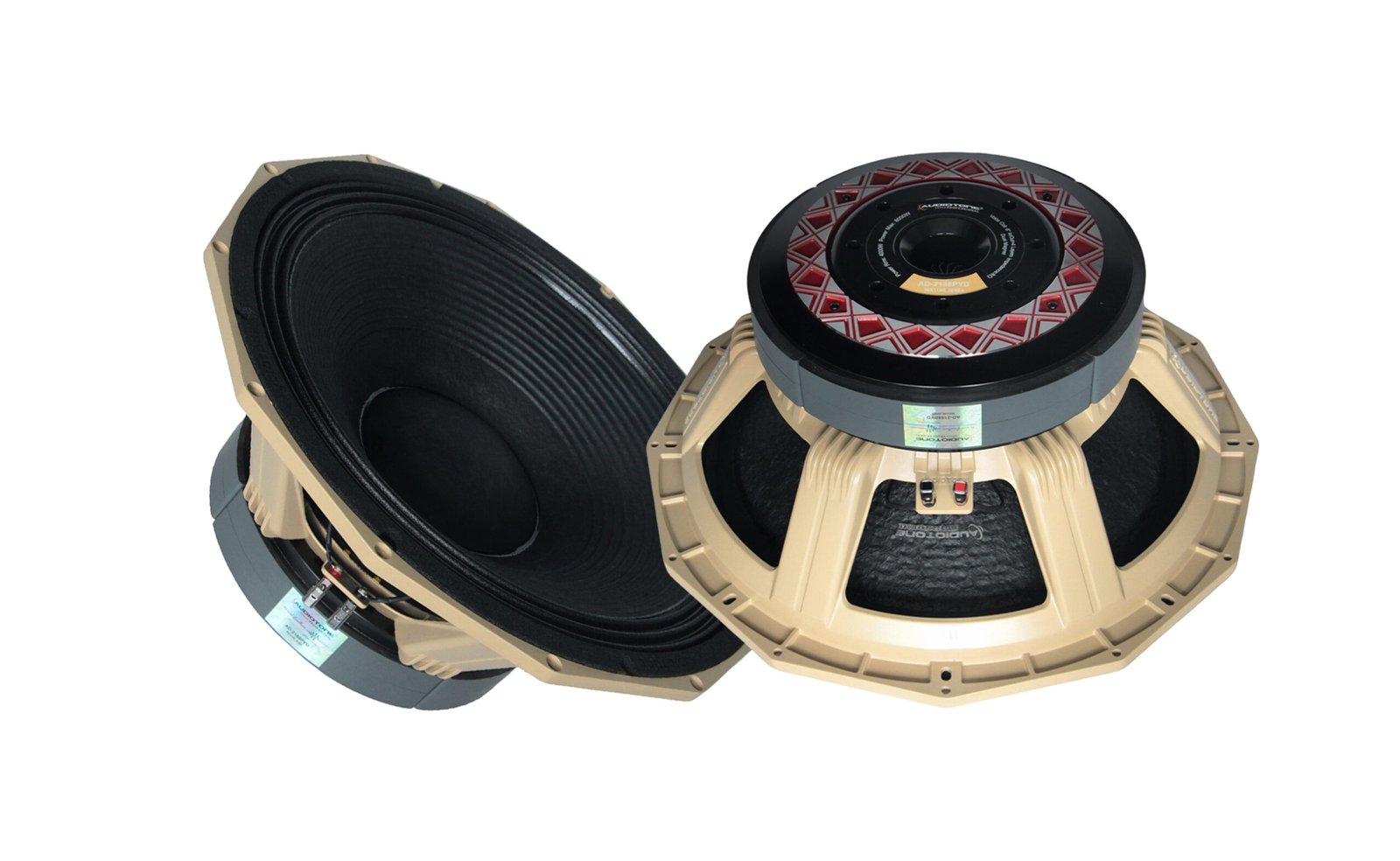

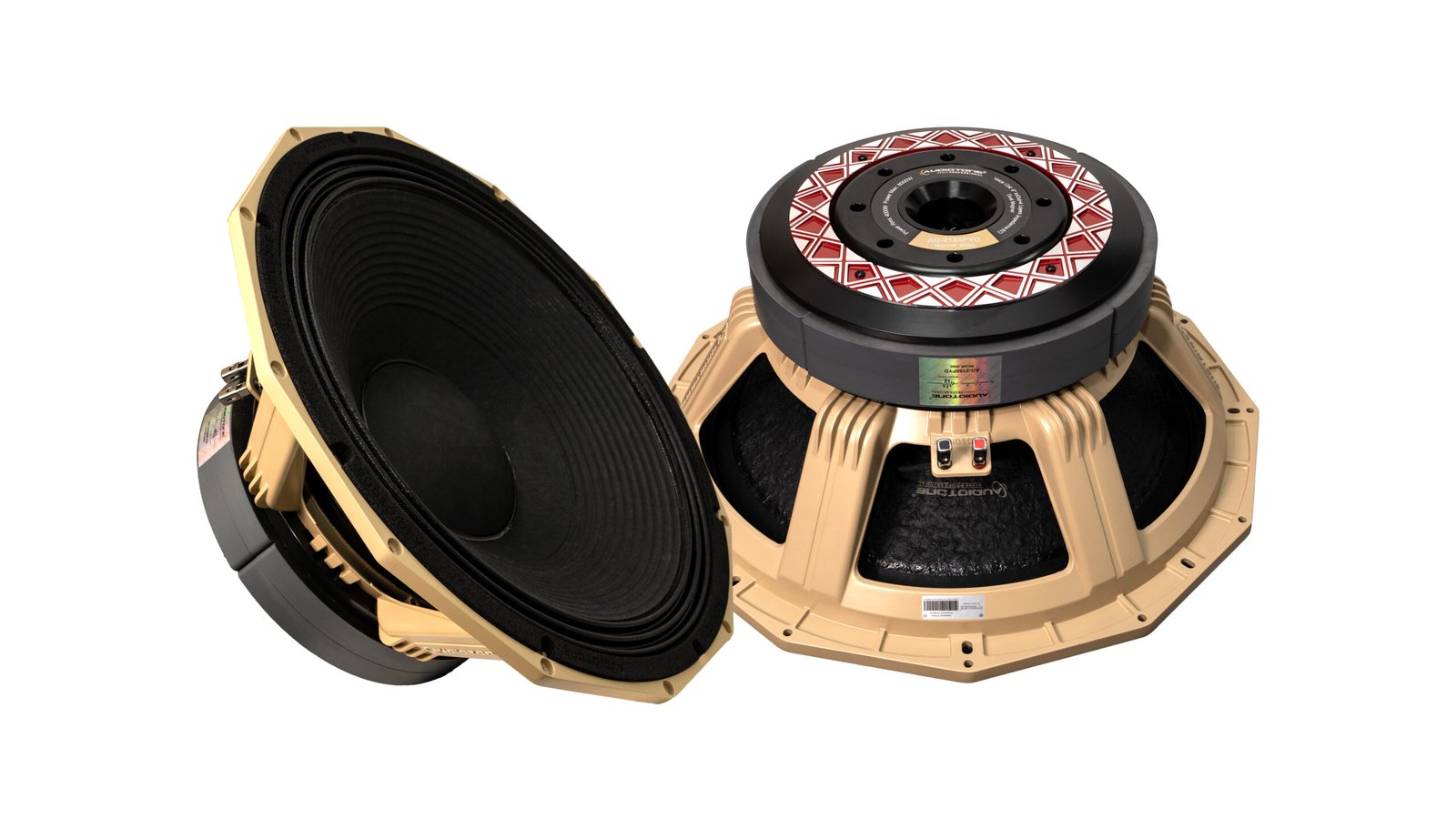

    AD-2188PYD (21-Inch Flagship Subwoofer)

    The Audiotone AD-2188PYD is the ultimate heavy-weight flagship speaker in the Nuclear Series. Delivering a staggering 4000 Watts RMS (8000 Watts Peak), this 21-inch monster is built for extreme applications where maximum loudness and raw low-end power are mandatory.

    Engineered with dual high-strength magnets and an industry-leading sensitivity rating, the AD-2188PYD produces massive volume levels with lower strain on your power amplifiers. It is engineered for sound system builders and touring professionals who demand uncompromised performance at massive events and major music festivals.

    Key Highlights

    • Flagship 8000W Max Power: Built to handle high-output power amplifiers without breaking a sweat.
    • Industry-Leading Output: Highly efficient motor system converts amplifier energy into maximum volume output.
    • Dual-Magnet Motor Assembly: Keeps speaker movement tight and precise even at maximum volume levels.
    • Maximum Structural Strength: Built with a reinforced frame weighing over 39 kg to absorb severe acoustic energy.

    Frequently Asked Questions

    What makes the Audiotone AD-2188PYD the flagship model in the Nuclear Series?

    The AD-2188PYD offers the highest power handling in the lineup (4000W RMS/8000W MAX) combined with 98.3dB a  sensitivity rating and a dual-magnet system, making it Audiotone’s most powerful sub-bass driver.

    What amplifier power rating is recommended for the AD-2188PYD?

    To get the best performance out of the AD-2188PYD, pair it with a professional power amplifier capable of delivering between 4000W TO 6000W per channel into an 8Ω load.
