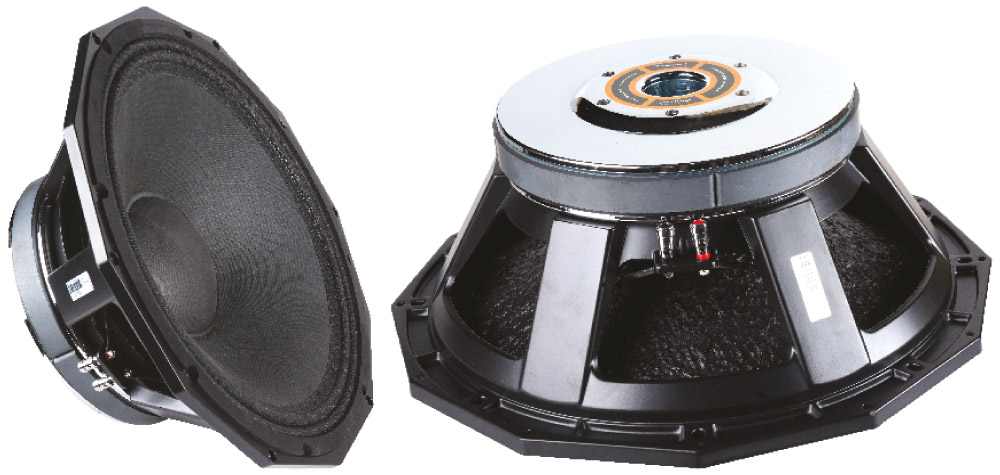

1855PD
Key Features
✔ 18″ (487mm) Large-Excursion Woofer
✔ 4100W Program Power (2050W RMS)
✔ 5″ Dual Voice Coil for Extreme Power Handling
✔ 98dB Sensitivity for High Output Efficiency
✔ Y35 Grade Ferrite Magnet System
Recommended Applications
✔ Bass Reflex / Bandpass Subwoofer Enclosures
✔ Large-Scale PA Systems (Festivals, Stadiums)
✔ Live Sound Reinforcement
✔ Cinema & Theater Sub-Bass Systems
| Nominal Diameter | 18" (487 mm) |
|---|---|
| Frequency Response | 35Hz–2kHz (±3dB) |
| Nominal Impedance | 8Ω |
| DC Resistance | 5.6Ω |
| Power Handling | 2050W RMS / 4100W Program |
| Sensitivity (SPL) | 98dB (1W/1m) |
| Voice Coil | 5" (127mm) Dual-Layer (In/Out Winding) |
| Magnet Assembly | 280×140×25mm (Y35 Ferrite) |
| Basket Material | Heavy-Duty Cast Aluminum |
| Net Weight | 20.1 kg (44.3 lbs) |
