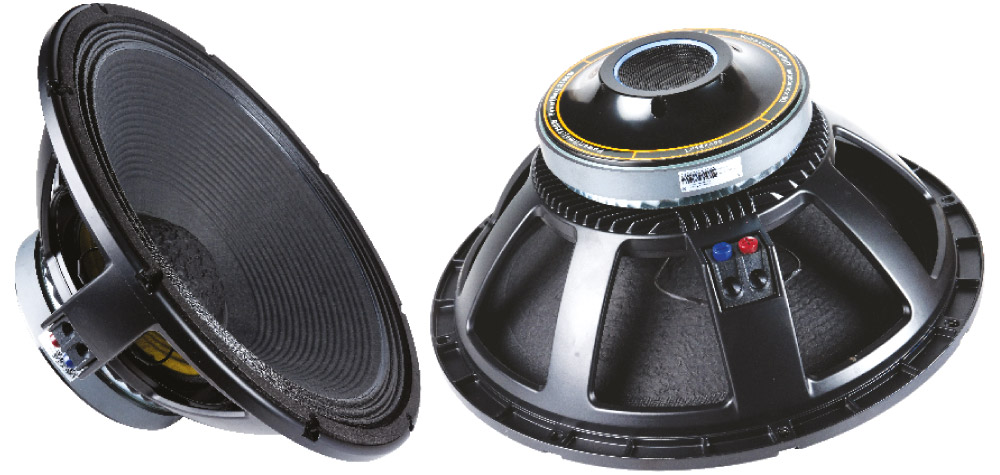

LF18X400
Key Features
✔ High-Excursion Woofer Design
✔ 2500W Program Power (1250W RMS)
✔ 4″ Dual Voice Coil for Enhanced Power Handling
✔ 98dB Sensitivity for High Output Efficiency
✔ Y35 Grade Ferrite Magnet System
Recommended Applications
✔ Bass Reflex / Bandpass Subwoofer Enclosures
✔ Live Sound Reinforcement
✔ Portable PA Systems
✔ Installation Audio (Theaters, Clubs)
| Nominal Diameter | 18" (465 mm) |
|---|---|
| Frequency Response | 36Hz–2kHz (±3dB) |
| Nominal Impedance | 8Ω |
| DC Resistance | 5.6Ω |
| Power Handling | 1250W RMS / 2500W Program |
| Sensitivity (SPL) | 98dB (1W/1m) |
| Voice Coil | 4" (100mm) Dual-Layer (In/Out Winding) |
| Magnet Assembly | 220×110×25mm (Y35 Ferrite) |
| Basket Material | Heavy-Duty Cast Aluminum |
| Net Weight | 12.9 kg (28.4 lbs) |
