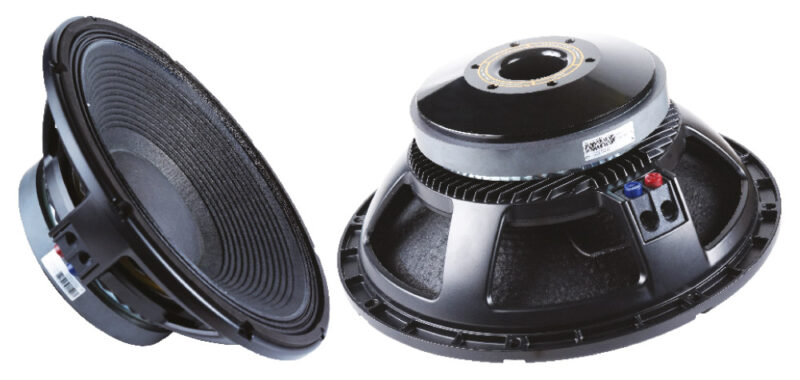

15LF650
Key Features
✔ 15″ (395mm) High-Output Woofer
✔ 1300W Program Power (650W RMS)
✔ 4″ Dual Voice Coil for Enhanced Power Handling
✔ 100dB Sensitivity for Exceptional Efficiency
✔ Y35 Grade Ferrite Magnet System
Recommended Applications
✔ Full-Range Speaker Systems
✔ Portable PA Enclosures
✔ Live Sound Reinforcement
✔ Installation Audio (Theaters, Clubs)
| Nominal Diameter | 15" (395 mm) |
|---|---|
| Frequency Response | 49Hz–2.8kHz (±3dB) |
| Nominal Impedance | 8Ω |
| DC Resistance | 5.6Ω |
| Power Handling | 650W RMS / 1300W Program |
| Sensitivity (SPL) | 100dB (1W/1m) |
| Voice Coil | 4" (100mm) Dual-Layer (In/Out Winding) |
| Magnet Assembly | 220×110×25mm (Y35 Ferrite) |
| Net Weight | 11.5 kg (25.4 lbs) |
